Sensor, Coolant Temperature: Installation: 2.8L

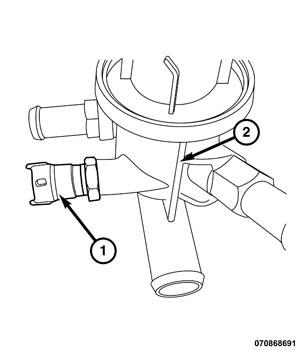

Fig 1: Coolant Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the coolant temperature sensor (1). Tighten the coolant temperature sensor (1) to 14 N.m (10 ft. lbs.).
   Fig 2: Thermostat Housing

   Courtesy of CHRYSLER GROUP, LLC
2. Install the thermostat housing (2). Refer to THERMOSTAT, INSTALLATION .
3. Connect the negative battery cable.
