P0440-General EVAP System Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

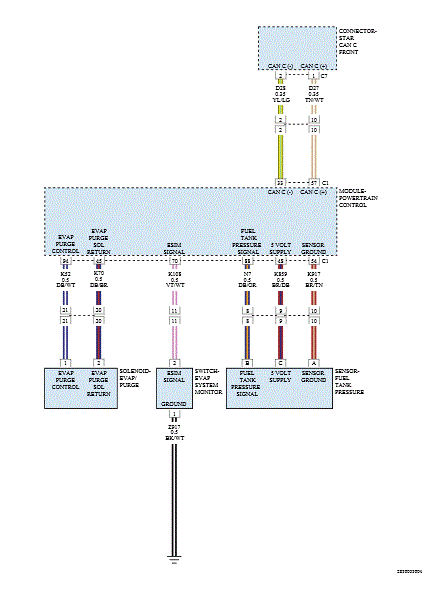

Fig 1: EVAP Purge Solenoid, EVAP System Monitor Switch & Fuel Tank Pressure Sensor - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
