Module, Occupant Restraint Controller: Removal: Bracket

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

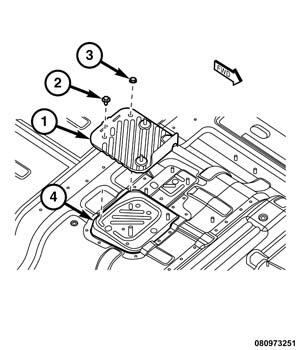

Fig 1: Screw, Nut & Adapter Bracket
GC0154615Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery. Wait two minutes for the system capacitor to discharge before further service.
  2. Remove the Occupant Restraint Controller (ORC) from the vehicle. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, REMOVAL .
  3. Remove the screw (2) that secures the adapter bracket (1) to the mount (4) welded onto the top of the floor panel transmission tunnel.
  4. Remove the nut (3) that secures the bracket to the stud on the mount.
  5. Remove the adapter bracket from the mount.
