Sensor, Mass Airflow (MAF): Installation

Courtesy of CHRYSLER GROUP, LLC

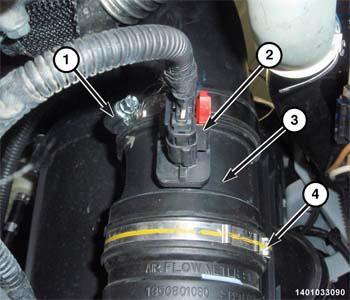

1. Install the MAF sensor (3) and securely tighten clamp (1).
2. Connect the lower tube and install a new band clamp (4).
3. Connect the MAF sensor wire harness connector (2).
4. Remove support and lower the vehicle.
5. Connect the negative battery cable.
