Sensor, Diesel Exhaust Fluid Level/Temperature: Removal

  1. Disconnect the negative battery cable.
  2. Remove Diesel Exhaust Fluid (DEF) tank. Refer to TANK, DIESEL EXHAUST FLUID, REMOVAL .

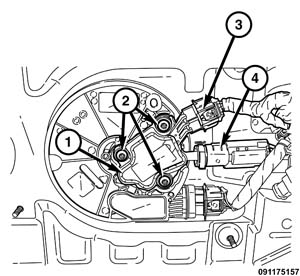

    GC0157439Courtesy of CHRYSLER GROUP, LLC
  3. Remove fasteners (2) and the DEF pump (1).
  4. Discard the DEF tank.
