Sensor, EGR Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

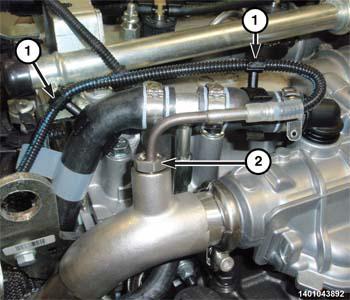

1. Install EGR temperature sensor (1). Tighten to 45 N.m (33 ft. lbs.).
2. Attach the wire harness to retaining clips (1).

   Courtesy of CHRYSLER GROUP, LLC

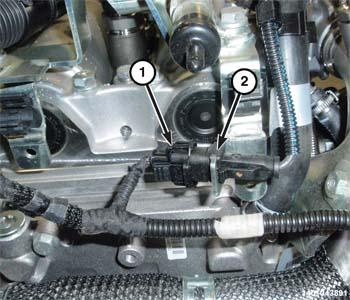

3. Attach the connector (2) to bracket and connect EGR temperature sensor wire harness connector (1).
4. Install the engine cover.
5. Connect the negative battery cable.
