Cable, Shift: Adjustments: Adjustment

  1. Park the vehicle on level ground and set the parking brake.
  2. Place the gearshift lever in gated park (P) and remove ignition key.

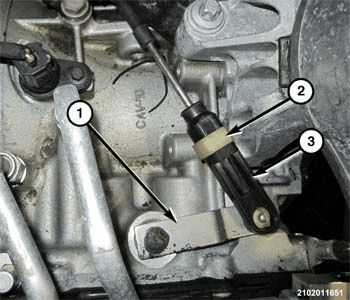

    GC0160498Courtesy of CHRYSLER GROUP, LLC
  3. Release the cable adjustment cross-lock (2) on the shifter cable by pulling up on the cross-lock.
  4. Pull the manual lever (1) fully forward to the park detent position.
  5. Release the park brake, then rock the vehicle to assure it is in park. Reset the park brake.
  6. Lock the cable adjustment by pushing the cross-lock (2) down, the cable should now be properly adjusted.
  7. Verify adjustment by using the verification procedure.
