Knob, Gearshift: Removal

GC0160247Courtesy of CHRYSLER GROUP, LLC

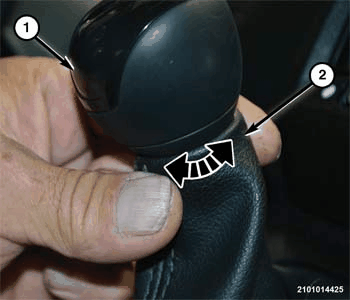

  1. Grasp and slightly twist the top of the shifter boot (2) at the base of the shifter knob (1) to release the boot from the knob.
    GC0160217Courtesy of CHRYSLER GROUP, LLC
  2. Pull the shifter boot (3) down.
  3. Using a suitable tool pull the retention clip (2) out of the shifter knob (1).
  4. Pull up on the knob to remove.
