Automatic Transmission (Service Information): Removal

  1. Disconnect the negative cable at the battery.
  2. Open hood.
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Drain the coolant. Refer to DRAINING .
  5. Remove the half shafts. Refer to REMOVAL .
  6. Remove the exhaust cross under pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL .
  7. Remove the rear engine mount.
  8. Remove the starter. Refer to STARTER, REMOVAL .
    GC0160540Courtesy of CHRYSLER GROUP, LLC
  9. Remove the torque converter bolts (1).
    GC0158451Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the output speed sensor harness connectors (1 and 2).
  11. Remove ground wire at rear of transmission.
  12. Lower the vehicle.
  13. Remove the coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL .
  14. Remove coolant reservoir mounting bracket fasteners and position bracket aside.
    GC0160252Courtesy of CHRYSLER GROUP, LLC
  15. Disconnect the shifter cable from the transmission lever (3).
  16. Remove the two bolts that secure the shifter cable and bracket (1) to the transmission and position aside.
  17. Remove ground wire from transmission stud bolt.
    GC0160731Courtesy of CHRYSLER GROUP, LLC
  18. Remove the 4 upper transmission to engine block fasteners (1 and 2).
    GC0160252Courtesy of CHRYSLER GROUP, LLC
  19. Remove upper transmission mount bolt (2).
  20. Disconnect turbine speed sensor harness connector (5).
  21. Disconnect oil cooler lines at transmission (4).
    GC0122501Courtesy of CHRYSLER GROUP, LLC
  22. Disconnect the solenoid pack connector (2) at the transmission.
  23. Raise the vehicle.

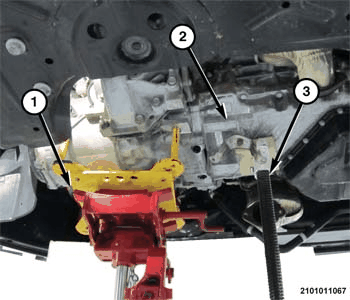

    GC0160187Courtesy of CHRYSLER GROUP, LLC
  24. Support the engine (3).
  25. Position a suitable transmission jack under transmission and secure transmission to jack (1).
    CAUTION:

    Do not reuse fasteners. Reusing fasteners and not installing new fasteners tightened to the proper torque specifications may lead to catastrophic failure.

    GC0160506Courtesy of CHRYSLER GROUP, LLC
  26. Remove and

    DISCARD

    the four bolts (1) holding left mount (2) to the transmission (3).

    NOTE:

    Photo depicts transmission removed for clarity.

    GC0160186Courtesy of CHRYSLER GROUP, LLC
  27. Remove transmission-to-engine bolt near valve body oil pan (1).
    GC0160540Courtesy of CHRYSLER GROUP, LLC
  28. Remove the five engine-to-transmission lower bolts (2).
  29. Remove the two remaining lower bellhousing bolts.
  30. Lower transmission from engine compartment.
