Sensor, Speed, Transmission Output: Installation

Courtesy of CHRYSLER GROUP, LLC

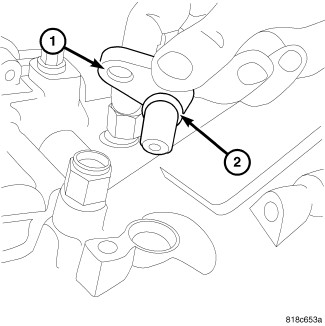

1. Install a new O-ring (2).

   Courtesy of CHRYSLER GROUP, LLC

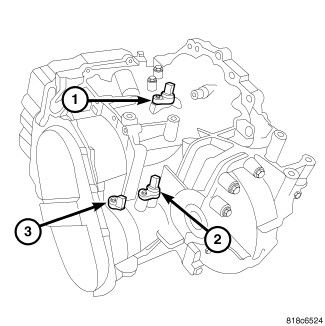

2. Install output speed sensor (2) into case.
3. Install bolt at output speed sensor and tighten specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

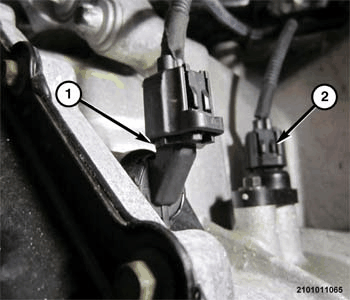

4. Engage electrical connector (2).
5. Install left front wheel. Refer to INSTALLATION .
6. Lower the vehicle.
7. Connect the negative battery cable.
