Automatic Transmission (Service Information): Installation

GC0174693Courtesy of CHRYSLER GROUP, LLC

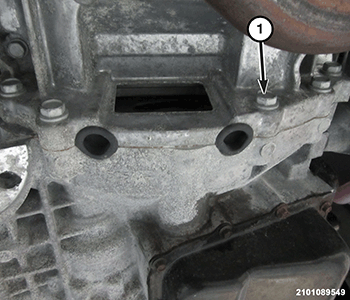

  1. Place the transmission into position and install the five engine to transmission bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0174689Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Make sure to align the slotted hole reference marks made during removal.

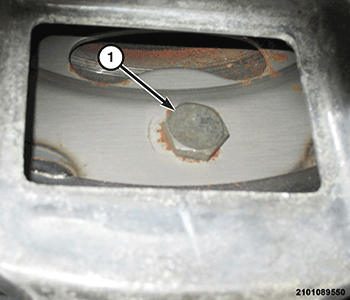

  2. Install torque converter bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0174694Courtesy of CHRYSLER GROUP, LLC

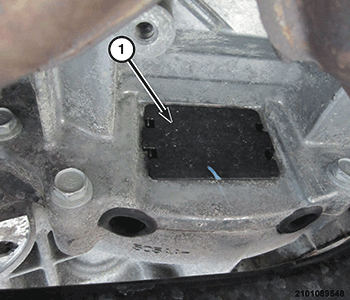

  3. Install the torque converter dust shield (1).
    GC0158451Courtesy of CHRYSLER GROUP, LLC
  4. Connect the Transfer Shaft Speed Sensor wire harness connector (1).
  5. Connect the Output Speed Sensor wire harness connector (2).
    GC0174687Courtesy of CHRYSLER GROUP, LLC

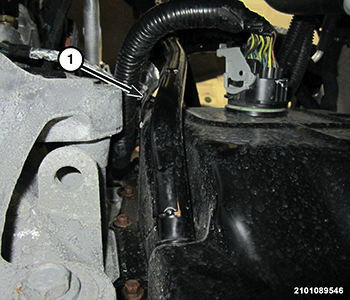

  6. Attach the wiring harness push pin (1).
    GC0174688Courtesy of CHRYSLER GROUP, LLC

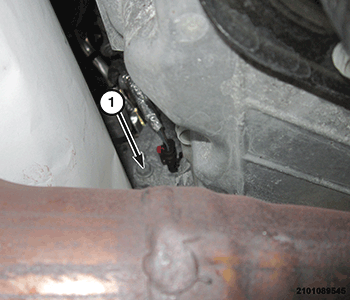

  7. Install the engine to transmission bolt (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0174690Courtesy of CHRYSLER GROUP, LLC

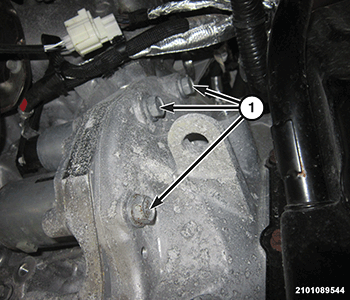

  8. Position the starter in place, install the starter bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0147033Courtesy of CHRYSLER GROUP, LLC

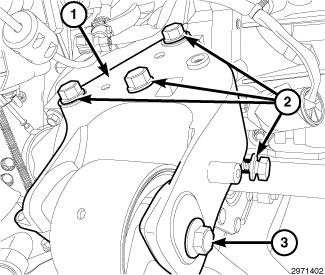

  9. Install the rear engine mount fasteners (2), tighten to proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  10. Install the front engine mount. Refer to INSULATOR, ENGINE MOUNT, FRONT, INSTALLATION .
  11. Install the front and both side splash shields. Refer to SHIELD, SPLASH, LEFT REAR WHEELHOUSE, INSTALLATION .
  12. Install both halfshafts. Refer to INSTALLATION .
    GC0174697Courtesy of CHRYSLER GROUP, LLC

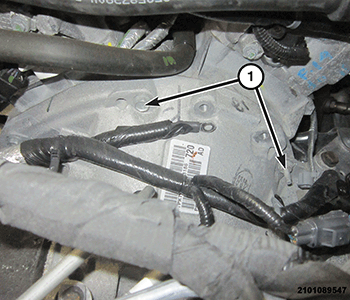

  13. Install the transmission upper bell housing bolt and stud (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0174701Courtesy of CHRYSLER GROUP, LLC

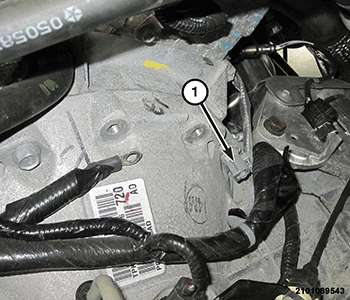

  14. Attach the wiring harness retainer (1) to the upper transmission bell housing stud.
    GC0174700Courtesy of CHRYSLER GROUP, LLC

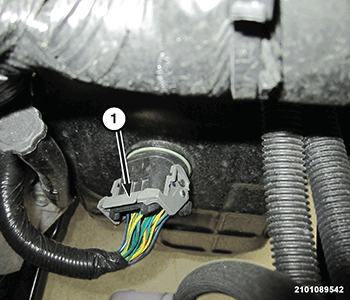

  15. Connect the transmission wire harness connector (1).
    GC0174691Courtesy of CHRYSLER GROUP, LLC

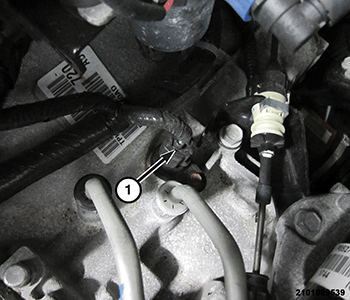

  16. Connect the input speed sensor wire harness connector (1).
    GC0174685Courtesy of CHRYSLER GROUP, LLC

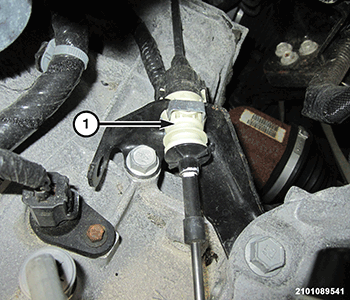

  17. Connect the shift cable (1) to the bracket.
    GC0174695Courtesy of CHRYSLER GROUP, LLC

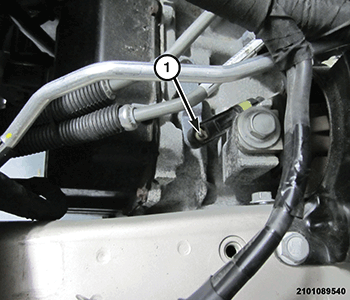

  18. Connect the shift cable end (1) to the transmission manual control lever. Verify proper adjustment. Refer to CABLE, SHIFT, ADJUSTMENTS .
    GC0174698Courtesy of CHRYSLER GROUP, LLC

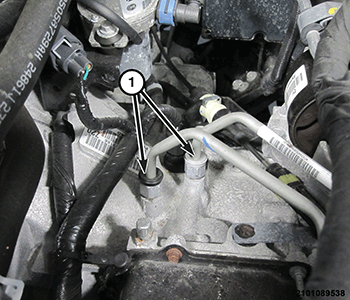

  19. Connect the transmission oil cooler lines (1) to the transmission. An audible 'click' should be heard. Verify the connection by pulling outward.
  20. Install the vacuum pump. Refer to PUMP, ELECTRIC VACUUM, INSTALLATION .
  21. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
  22. Install the battery. Refer to BATTERY, INSTALLATION .
  23. Fill the transmission. Refer to FLUID, STANDARD PROCEDURE .
