Sensor, Pressure Control: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the engine cover.
Remove the battery and battery tray. Refer to TRAY, BATTERY, REMOVAL .

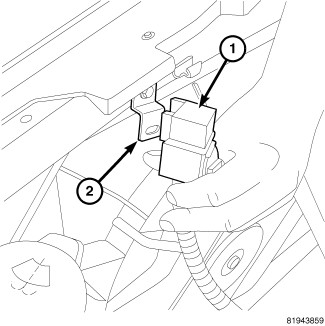

Remove the relay (1) at the core support.

Courtesy of CHRYSLER GROUP, LLC
Drain the radiator. Refer to STANDARD PROCEDURE .

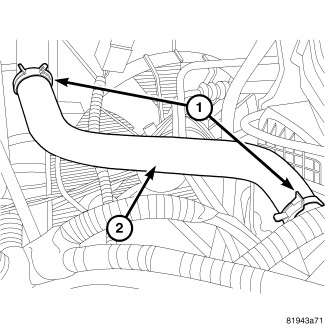

Remove clamps (1) at the upper radiator hose (2).
Remove the upper radiator hose (2).

Courtesy of CHRYSLER GROUP, LLC

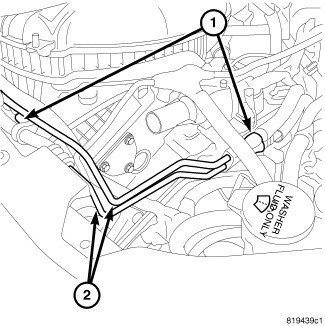

Remove the fasteners (1) holding the power steering lines (2).

Courtesy of CHRYSLER GROUP, LLC
Remove shift cable (1) from manual lever (2).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the solenoid pack (2) wire harness connectors.
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep the Top Sound Dampener Cover if replacing the unit
Remove the fasteners (1) and the front sound damper cover (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the top valve body oil pan (1) fasteners.

Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

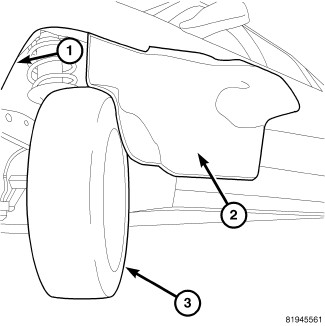

Remove the front left side inner wheel splash shield fasteners from front side of wheel opening (1) and fold shield (2) back.
Turn the wheel (3) fully to the left.

Courtesy of CHRYSLER GROUP, LLC
Remove the fastener (2) at the ground cable (3).
Remove the clip (1) at the valve body pan.
Move cable away from the valve body pan.

Courtesy of CHRYSLER GROUP, LLC
Remove the pressure tap plug (2) at valve body oil pan.
Remove the lower valve body oil pan fasteners (1) and drain transmission fluid.
Remove the valve body oil pan.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the line pressure sensor (2) wire harness connector.
Remove the fasteners (1) at the line pressure sensor (2).
Remove the line pressure sensor from the valve body.
