Sensor, Speed, Input: Installation

Courtesy of CHRYSLER GROUP, LLC

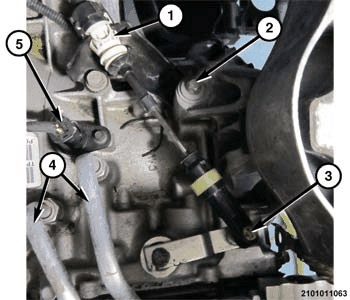

1. Install a new O-ring (2).

   Courtesy of CHRYSLER GROUP, LLC

2. Install input speed sensor (1) into case.

   Courtesy of CHRYSLER GROUP, LLC

3. Install bolt at input speed sensor and tighten to 12 N.m (105 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

4. Engage electrical connector (5).
5. Close the hood.
6. Connect the negative battery cable.
