Charging System (Service Information): Generator: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The fasteners must be installed in the generator and support bracket when positioning the generator.

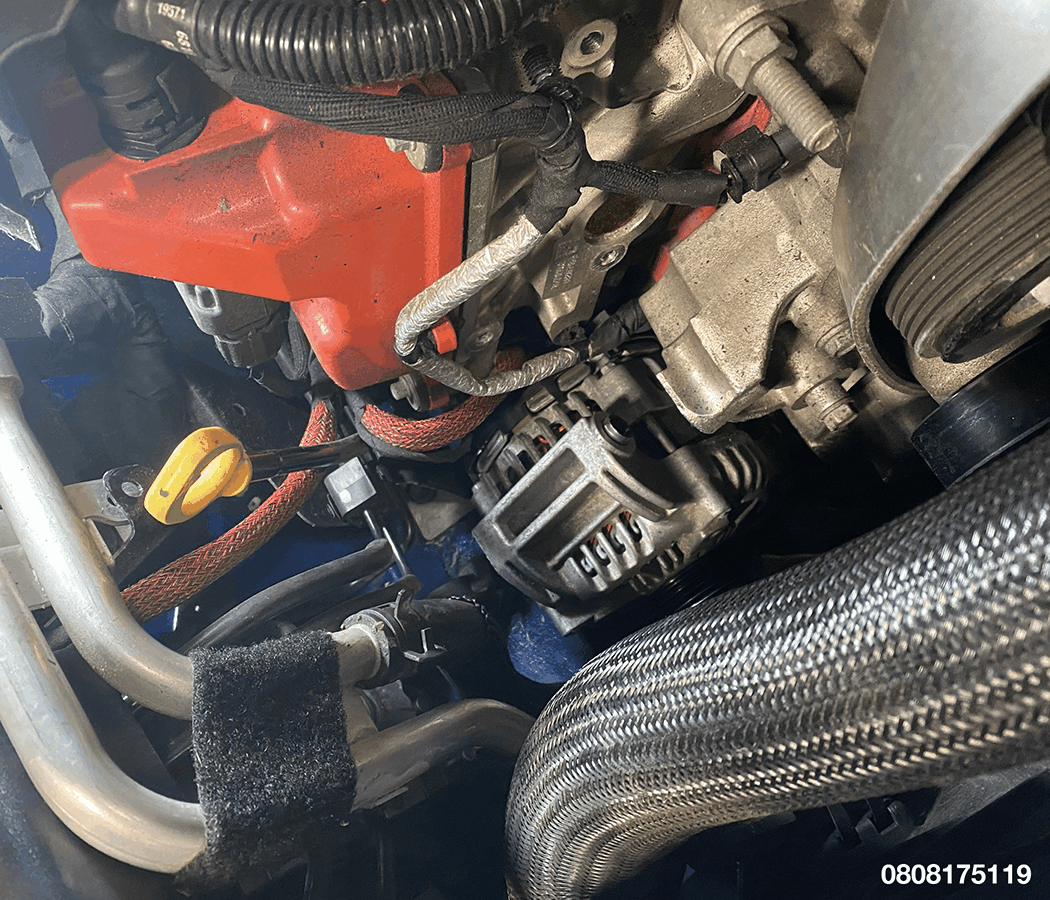

Position the generator and install the generator retaining bolts finger tight.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Position the generator B+ terminal eyelet to the generator output stud, install the retaining nut (3) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Install the insulator cover (2) onto the B+ output terminal.
Connect the field wire connector (1) to the rear of the generator.

Courtesy of CHRYSLER GROUP, LLC
Tighten the lower retaining bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Position the belly pan and install the belly pan retainers (1).
Remove the support and lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Install and tighten the generator upper retaining bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

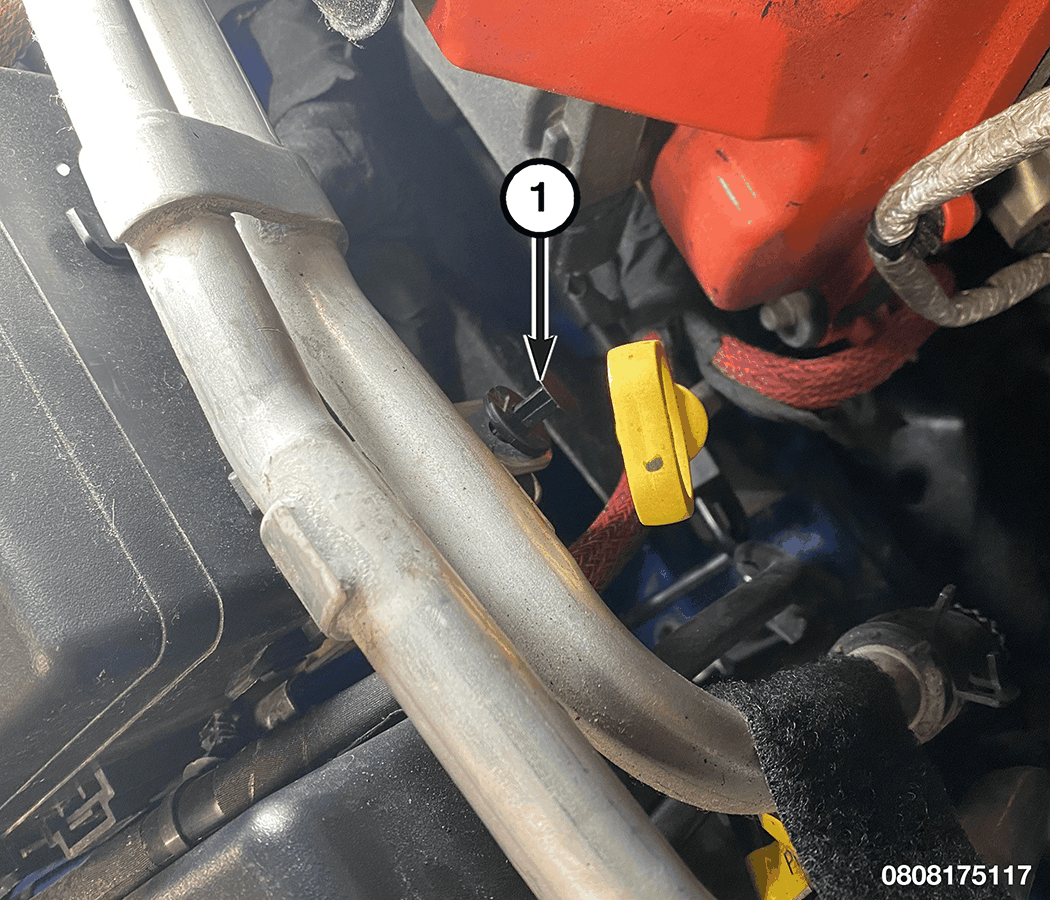

Install the pushpin (1) for the supercharger cooling tubes.
CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat.

CAUTION:
Do not let the tensioner arm snap back to the freearm position, severe damage may occur to the tensioner.
Install the supercharger tensioner and bracket. Refer to TENSIONER, DRIVE BELT, INSTALLATION .
Install the accessory drive serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
