Charging System (Service Information): Generator: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

Position the generator and install the two upper generator retaining bolts (1) finger tight.

Courtesy of CHRYSLER GROUP, LLC
Position the generator B+ terminal eyelet to the generator output stud, install the retaining nut (3) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the insulator cover (2) onto the B+ output terminal.
Snap the field wire connector (1) into the rear of the generator.

Courtesy of CHRYSLER GROUP, LLC
Install and tighten the lower retaining bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

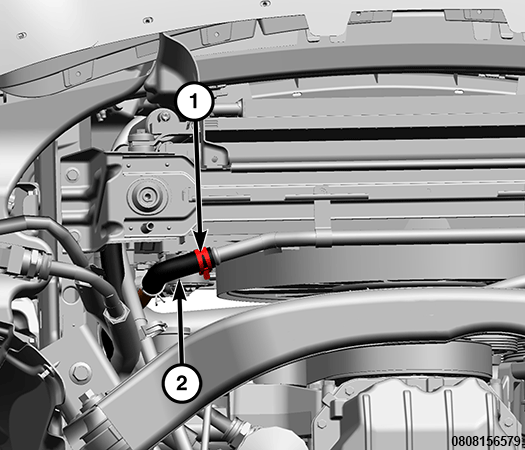

Connect the coolant hose (2) and install the coolant hose clamp (1).

Courtesy of CHRYSLER GROUP, LLC

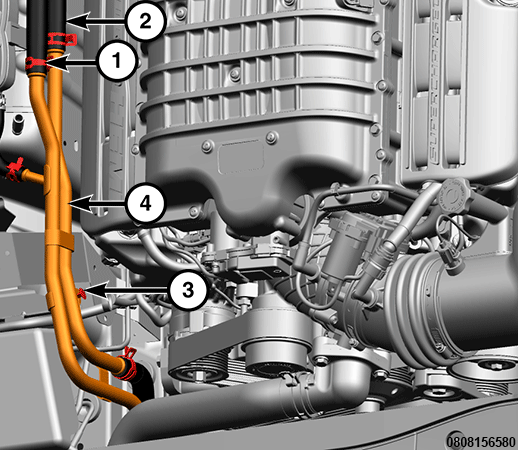

Position the coolant pipe (4) and install the pushpin (3).
Connect the coolant hoses (2).
Install the coolant hose clamps (1).

Courtesy of CHRYSLER GROUP, LLC
Install and tighten the generator upper retaining bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat.

CAUTION:
Do not let the tensioner arm snap back to the freearm position, severe damage may occur to the tensioner.
Install the belly pan. Refer to BELLY PAN, INSTALLATION .
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Connect the negative battery cable with Intelligent Battery Sensor (IBS). Refer to SENSOR, INTELLIGENT BATTERY (IBS), INSTALLATION .
Fill the low temperature cooling system. Refer to STANDARD PROCEDURE .
