Rear Heat Shield

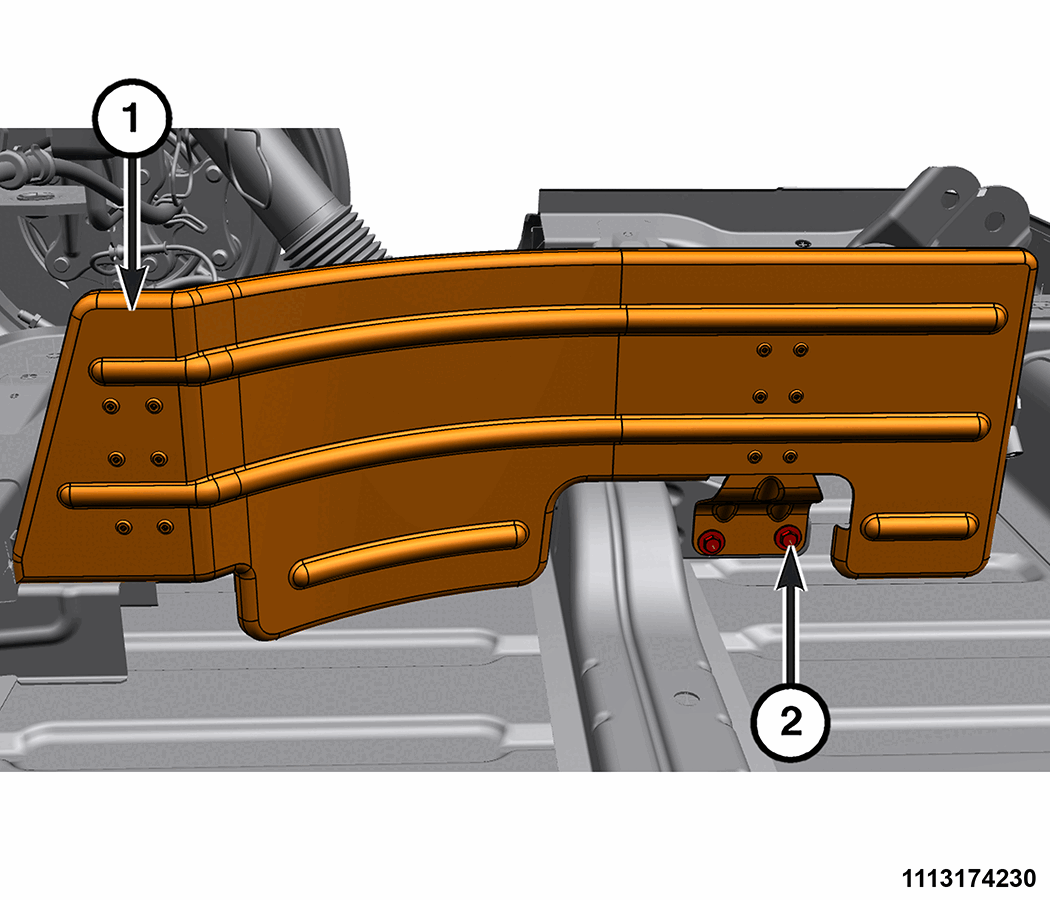

GC0199682Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear heat shield (1) and tighten the rear bolts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

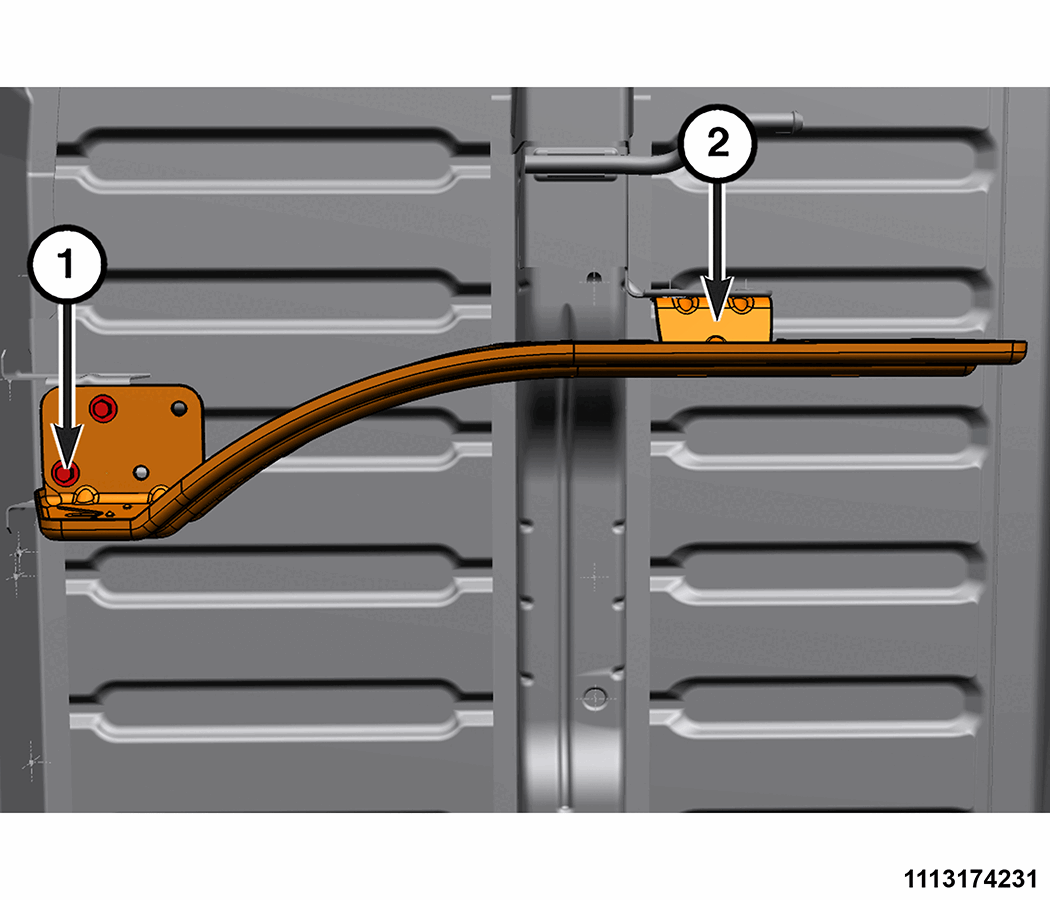

    GC0199659Courtesy of CHRYSLER GROUP, LLC
  2. Install the front bolts (1) securing the rear heat shield (2) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the spare tire.
  4. Remove the support and lower the vehicle.
