Tailpipe, Exhaust: Installation

Courtesy of CHRYSLER GROUP, LLC

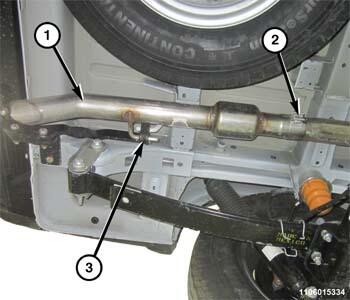

1. Install the tailpipe (1) to the exhaust outlet pipe. Tighten the band clamp (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
2. Install the tailpipe isolator (3).
