Removal 3.0L Diesel Engine

NOTE:

Before proceeding. Refer to WARNING .

Courtesy of CHRYSLER GROUP, LLC

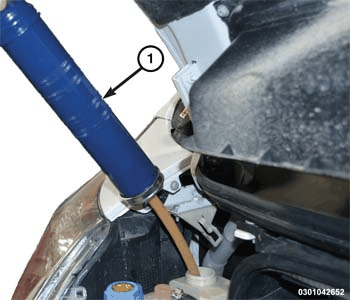

Siphon as much fluid as possible from the power steering fluid reservoir.
Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Disconnect the power steering return hose (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the power steering pressure hose (1). Discard the washers.

Courtesy of CHRYSLER GROUP, LLC
Remove the two power steering pump bolts (1).
Remove the power steering pump from the engine.
