Switch, EVIC Control: Description

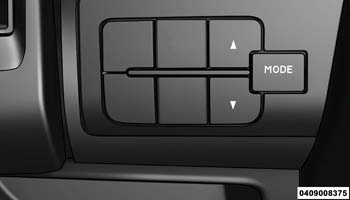

The Electronic Vehicle Information Center (EVIC) control switch pod is located to the left of the steering wheel on the instrument panel. This switch has up to seven push buttons. Three of the push buttons are used on all vehicles equipped with the EVIC and two of the push buttons are used on vehicles not equipped with the EVIC. Two additional push buttons are found on vehicles equipped with the optional Uconnect™ Hands-Free Communication System. The only visible components of the switch pod are the switch push buttons and a decorative bezel around the push buttons, which stands slightly proud of the instrument panel. The remainder of the switch pod including its mounting provisions and its electrical connection are concealed beneath the instrument panel.
The switch pod housing and push buttons are constructed of molded plastic. Each of the push buttons has white International Control and Display Symbol graphics or text applied to it, which clearly identify the function of each push button. The switch pod is secured through integral mounting tabs to the back of the instrument panel. A connector receptacle integral to the inboard end of the switch pod housing connects the EVIC control switch pod to the vehicle electrical system through a dedicated take out and connector of the steering wheel wire harness.
The EVIC control switch pod cannot be adjusted or repaired. If any function of the switch is ineffective or damaged, the entire switch pod unit must be replaced.
