Switch, EVIC Control: Installation

GC0171018Courtesy of CHRYSLER GROUP, LLC
WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

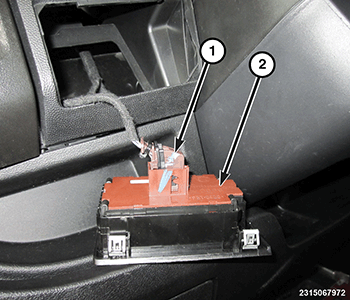

  1. Connect the wire harness connector (1) to the Electronic Vehicle Information Center (EVIC) control switch (2).
    GC0171057Courtesy of CHRYSLER GROUP, LLC

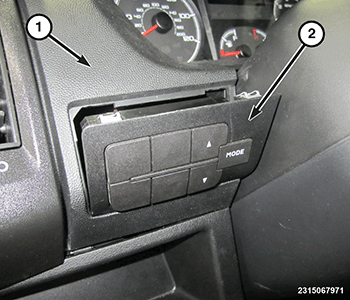

  2. Position the lower locating tabs of the EVIC control switch (2) to the instrument panel (1).
  3. Tilt and press the top of the EVIC control switch (2) into the instrument panel (1) until the retaining clips are fully engaged with the instrument panel.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
