Navigation/Telecommunication (Service Information): Microphone: Installation

Courtesy of CHRYSLER GROUP, LLC

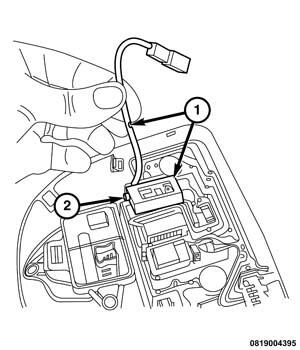

1. Position the microphone (1) to the back of the roof lamp housing.
2. Firmly press the microphone into the housing until the retainer (2) is fully engaged.
3. Install the roof lamp unit into the headliner. Refer to LAMP, DOME, INSTALLATION .
4. Connect the negative battery cable.
