Middle Heat Shield

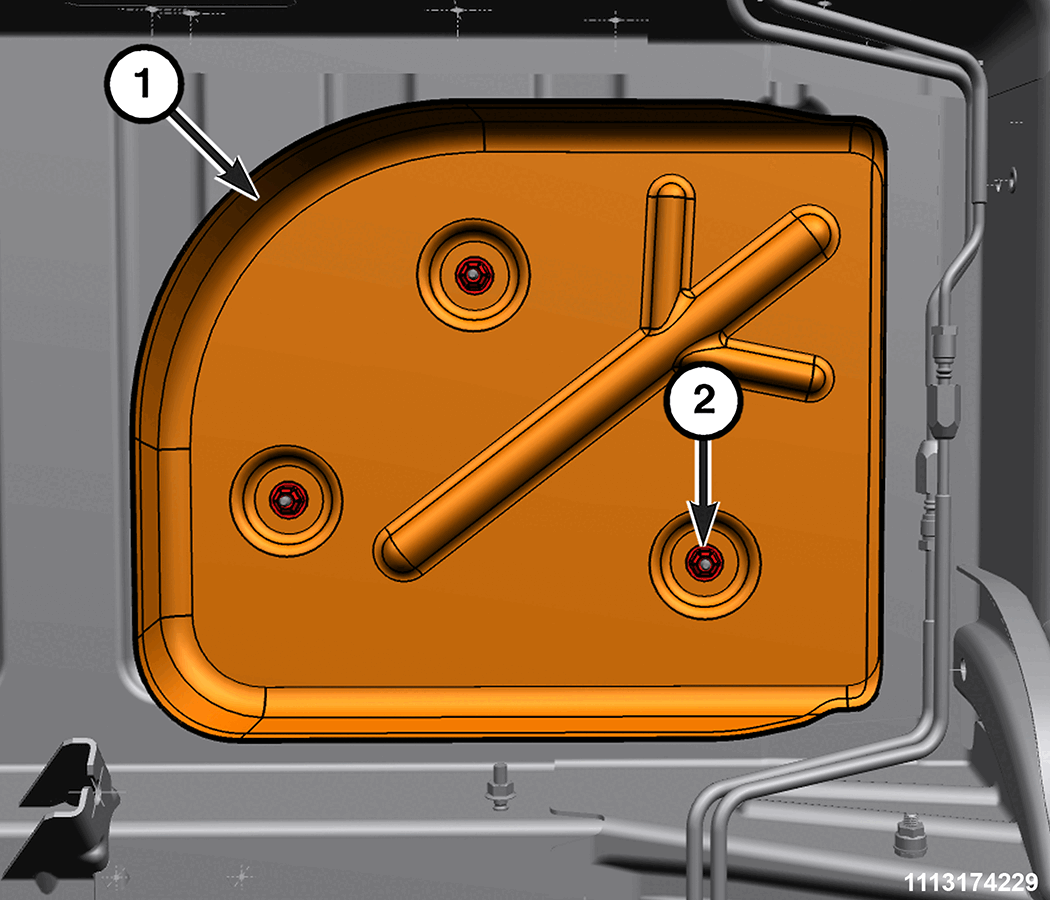

GC0199670Courtesy of CHRYSLER GROUP, LLC
  1. Install the center heat shield (1) and tighten the nuts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Remove the support and lower the vehicle.
