Pulley, Idler: Installation

NOTE:

With A/C only.

Courtesy of CHRYSLER GROUP, LLC

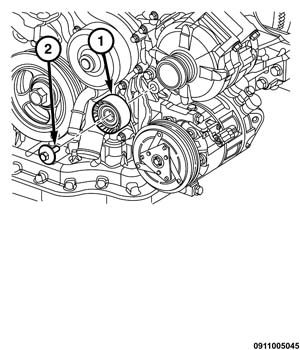

Install the idler pulley (1) and tighten the fastener to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
With A/C. Non A/C similar.

Courtesy of CHRYSLER GROUP, LLC
Install the upper idler pulley (3) and tighten the fastener to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
