Removal And Installation

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

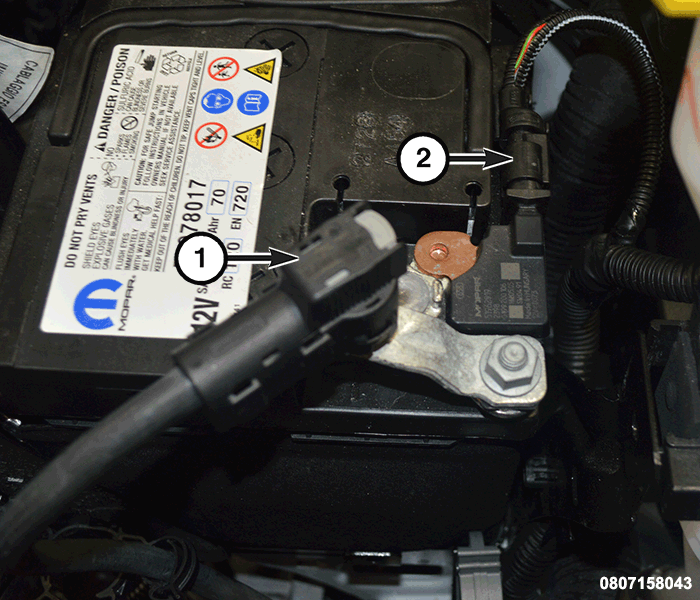

1. Disconnect the Intelligent Battery Sensor (IBS) (2) to prevent excessive wire bend during removal of the negative battery cable terminal end.
2. Disconnect and isolate the remote terminal connection from the negative post. Press the release tab and lift the connector (1) off of the post.

   Courtesy of CHRYSLER GROUP, LLC

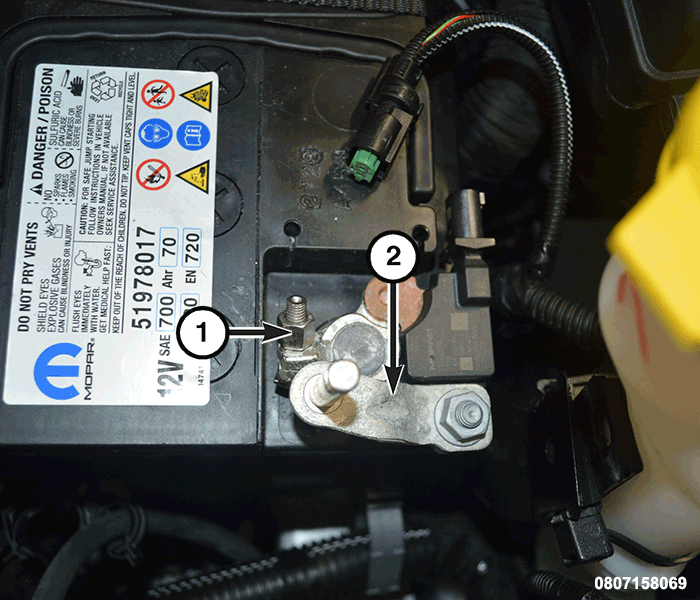

3. Disconnect and isolate the negative battery connector (2) from the negative battery post.

   Courtesy of CHRYSLER GROUP, LLC

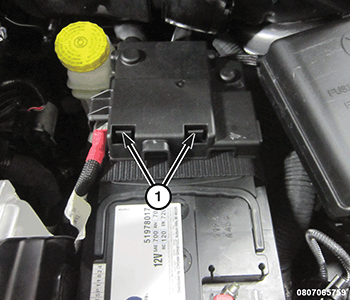

4. Remove the positive battery fuse and junction box cover by pressing both tabs (1) and then lifting up on the cover.

   Courtesy of CHRYSLER GROUP, LLC

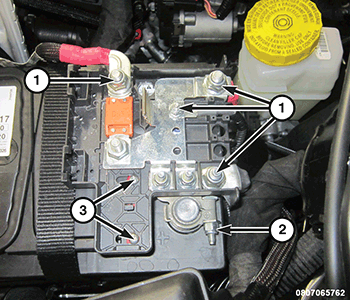

5. Disconnect the electrical connections (1) to the battery fuse junction box.
6. Remove the two junction box retaining screws (3).
7. Loosen the positive terminal battery clamp (2) from the post.
8. Lift the auxiliary junction box from the battery and position aside.

   Courtesy of CHRYSLER GROUP, LLC

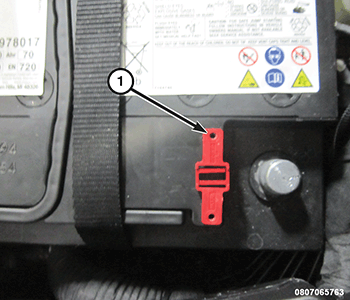

9. Using a trim stick or equivalent tool, remove the auxiliary junction box retainer (1) from the battery.

   Courtesy of CHRYSLER GROUP, LLC

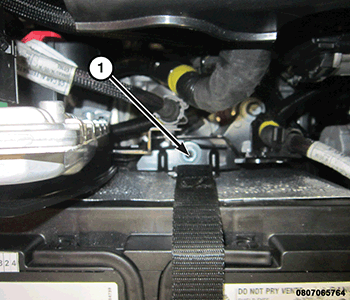

10. Remove the bolt (1) securing the battery strap in position.
11. Remove the battery from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the battery to the vehicle.
2. Install the battery strap and retain it using the supplied bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Transfer the auxiliary junction box retainer (1) to the new battery (if battery was replaced).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the positive battery clamp (2) to the positive battery terminal and tighten.
5. Position the auxiliary junction box to the battery for installation.
6. Line the auxiliary junction block properly to install two retaining screws (3).
7. Connect all electrical connections (1) to the auxiliary junction block.

   Courtesy of CHRYSLER GROUP, LLC

8. Position and snap the auxiliary junction box cover into place.

   Courtesy of CHRYSLER GROUP, LLC

9. Install the negative battery terminal to the negative battery post (2) and securely tighten the nut (1).

   Courtesy of CHRYSLER GROUP, LLC

10. Connect the remote negative terminal connection (1) to the negative battery pole.
11. Connect the Intelligent Battery Sensor (IBS) connector (2).
