Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Inspect and replace the Manifold Air Pressure (MAP) O-ring seal (1) as necessary.

   Courtesy of CHRYSLER GROUP, LLC

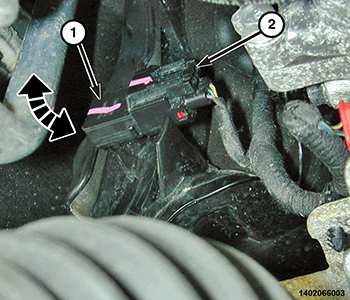

2. Install the MAP sensor (1) to the intake manifold and rotate 90° clockwise to lock in place.
3. Connect and lock the MAP sensor wire harness connector (2).
4. Remove the support and lower the vehicle.
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
