Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION
.NOTE:
Prior to removing the coil, spray compressed air around coil top to make sure no dirt drops into the spark plug tube.

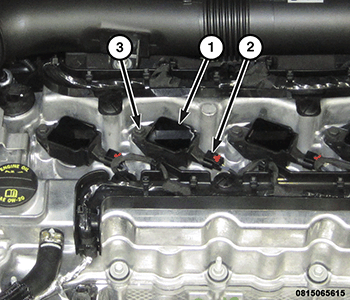

- Unlock and disconnect the electrical connector (2) from the ignition coil (1).
- Remove the ignition coil mounting bolt (3).
- Pull the ignition coil (1) from cylinder head cover opening with a slight twisting action.
