Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the gear shifter in the vehicle.
    GC0171233Courtesy of CHRYSLER GROUP, LLC

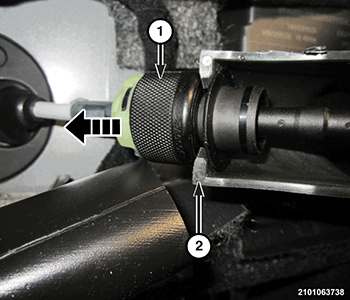

  2. Pull on the shifter cable knurled ring (1) while installing the cable into the shifter housing (2).
    GC0172069Courtesy of CHRYSLER GROUP, LLC

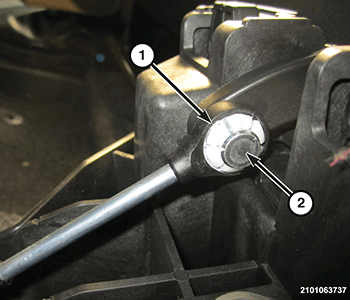

  3. Push the shifter cable end (1) onto the shifter assembly pin (2).
    GC0171657Courtesy of CHRYSLER GROUP, LLC

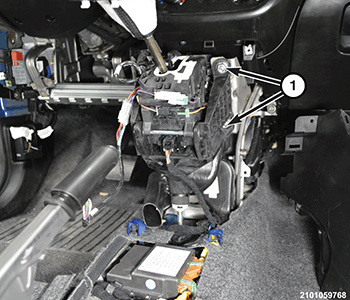

  4. Hand start the upper and lower right side shifter mounting fasteners.
    GC0171678Courtesy of CHRYSLER GROUP, LLC

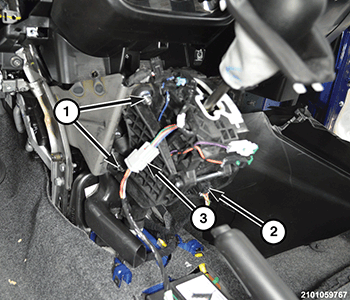

  5. Install the upper and lower left side shifter mounting fasteners (1) and tighten them to the proper specification. Refer to TORQUE SPECIFICATIONS .
  6. Connect the wire harness connectors (2, 3) to the shifter assembly.
  7. Install the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
  8. If necessary, adjust the shifter cable. Refer to CABLE, SHIFT, ADJUSTMENTS .
  9. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
