Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.

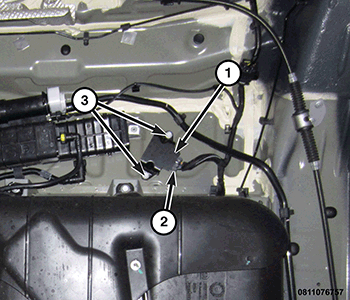

- Install the fuel pump control module (1) in the bracket.
- Install the fuel pump control module mounting bolts (3) and tighten to 10 N.m (89 in. lbs.).
- Connect the wire harness connector (2) to the module.
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
