Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.

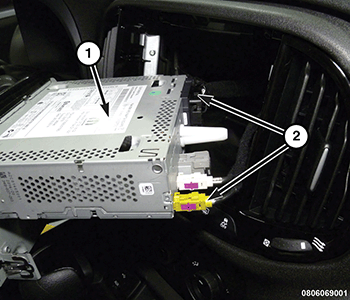

- Connect the antenna cable connectors to the radio (2).
- Connect the radio wire harness connectors (2).

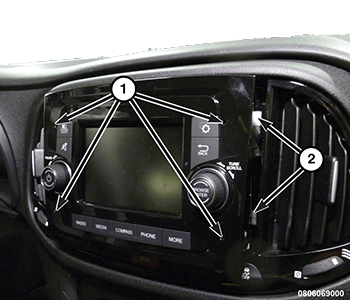

- Insert the radio into the instrument panel and engage the inner retaining clips (2).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
The radio must be programmed after a radio replacement.
