Removal And Installation: Installation
- Using a suitable pry bar with a pointed end, position the lower control arm in the vehicle.

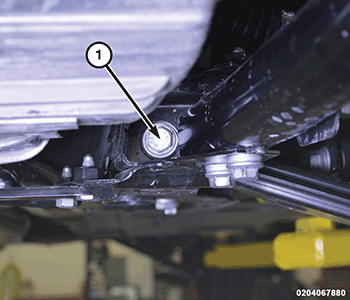

- Install a new front lower control arm bolt (1) and tighten. Do not torque the bolt at this time.

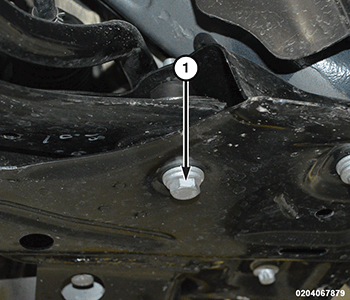

- Install a new rear lower control arm bolt (1) and tighten. Do not torque the bolt at this time.

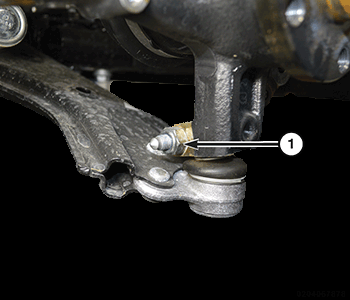

- Position the lower control arm into the knuckle and install a new lower control arm bolt (1). Do not torque the bolt at this time.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Lower the vehicle to the floor on the vehicle weight. Tighten all fasteners to the proper torque specification. Refer to SPECIFICATIONS .
