Arm, Upper Control: Removal

  1. Secure the steering wheel in the straight ahead position.
    GC0210295Courtesy of CHRYSLER GROUP, LLC
  2. If equipped, remove the wiring harness routing clip (2) from the shock mounting stud.
    NOTE:

    Loosen the shock retainer nuts only. The shock must be tilted for removal of the control arm bolts.

  3. Loosen the three upper shock mounting nuts (1).
  4. Remove the cowl panel cover, and the cowl extension silencer. Refer to COVER, COWL PANEL, REMOVAL and Refer to SILENCER, COWL EXTENSION, REMOVAL .
    GC0210297Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    3.6L shown, others similar.

  5. For the left side only, remove the air cleaner housing as follows:
    1. Remove the air cleaner.
    2. Loosen the fresh air intake clamp (4) and disconnect the hose from housing cover (1).
    3. Disconnecting the PCV air return hose and the power steering hose routing clip (not shown) from the air cleaner body.
    4. Disconnect the weatherstrip (3) from the housing inlet and reposition.
    5. Remove the pushpin (2) and lift the housing from the body grommets to remove.
    GC0210296Courtesy of CHRYSLER GROUP, LLC
  6. For the left side only, remove the steering intermediate shaft pinch bolt (1), disconnect the coupler (3) and position aside for clearance.
    GC0210299Courtesy of CHRYSLER GROUP, LLC
  7. For the right side only, remove the two nuts (2) that secure the HVAC air inlet duct (1) to the engine compartment side of the dash panel (3) and remove the duct.
    GC0173647Courtesy of CHRYSLER GROUP, LLC
  8. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  9. Remove the tire and wheel assembly.
  10. Remove the speed sensor bolt (2), and remove the sensor from the knuckle.
  11. Remove the speed sensor wiring retaining clip from the knuckle.
  12. Support the outside of the lower control arm (8) with a suitable holding fixture, and raise to normal ride height.
  13. Remove the clevis to lower control arm bolt/nut (6).
    GC0210294Courtesy of CHRYSLER GROUP, LLC
  14. Remove the upper ball joint retaining nut (4) from the ball joint (2).
    GC0210298Courtesy of CHRYSLER GROUP, LLC

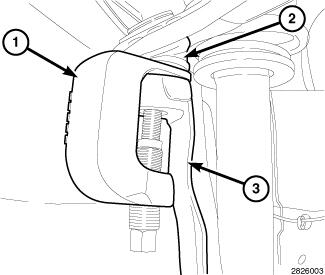

  15. Separate the upper ball joint (2) from the knuckle (3) using Ball Joint Press (special tool #C-4150A, Press, Ball Joint) (1).
    GC0210293Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    It is necessary to pull the bottom of the shock assembly outward just enough to remove the upper control arm flag bolts (1) without completely removing the shock assembly.

  16. Remove the nuts and flag bolts (1) securing the upper control arm (5) to the body.
  17. Remove the upper control arm (5) from the vehicle.
