Module, Adaptive Cruise Control (Acc): Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
- Disconnect the wire harness connector from the Adaptive Cruise Control (ACC) radar.
- Remove the fasteners securing the ACC radar to the front fascia, then remove the ACC radar.

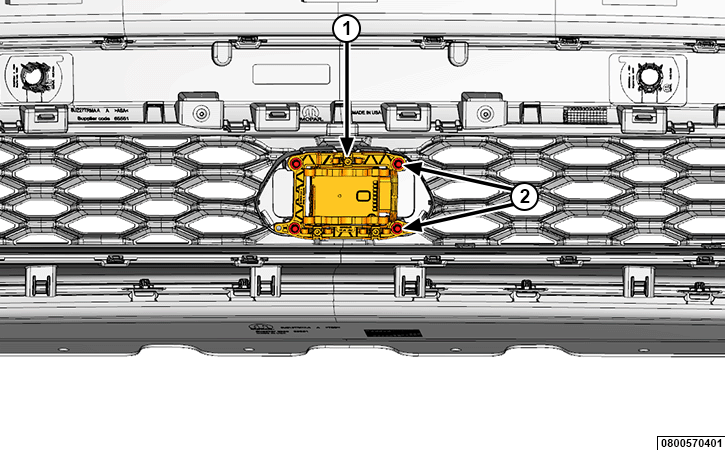

1 - ACC Radar 2 - Fasteners
