Sensor, Air Temperature, Intake: Installation: 5.7L

Check the condition of the Intake Air Temperature (IAT) sensor O-Ring, replace if necessary.

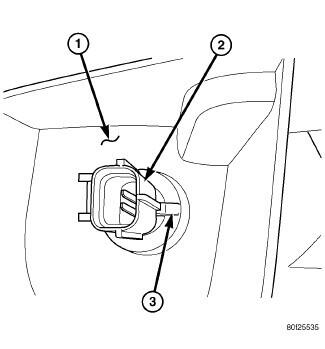

Clean the IAT sensor (2) mounting hole in the air cleaner resonator.

Courtesy of CHRYSLER GROUP, LLC
Position the IAT sensor into the air cleaner resonator (1), rotate clockwise about 1/4 turn until the release tab (3) locks into position.

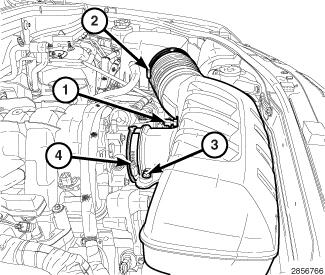

Connect the electrical connector to the IAT sensor (1).

Courtesy of CHRYSLER GROUP, LLC

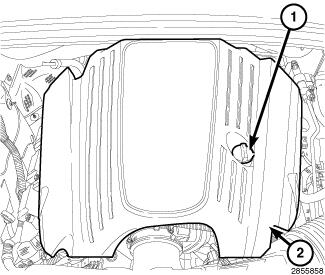

Position the engine cover (2) and secure the retaining grommets to the ball studs.

Courtesy of CHRYSLER GROUP, LLC
Install the oil fill cap (1).
