Module, Fuel Pump Control: Installation
- Position the fuel pump control module(s) onto the mounting bracket.

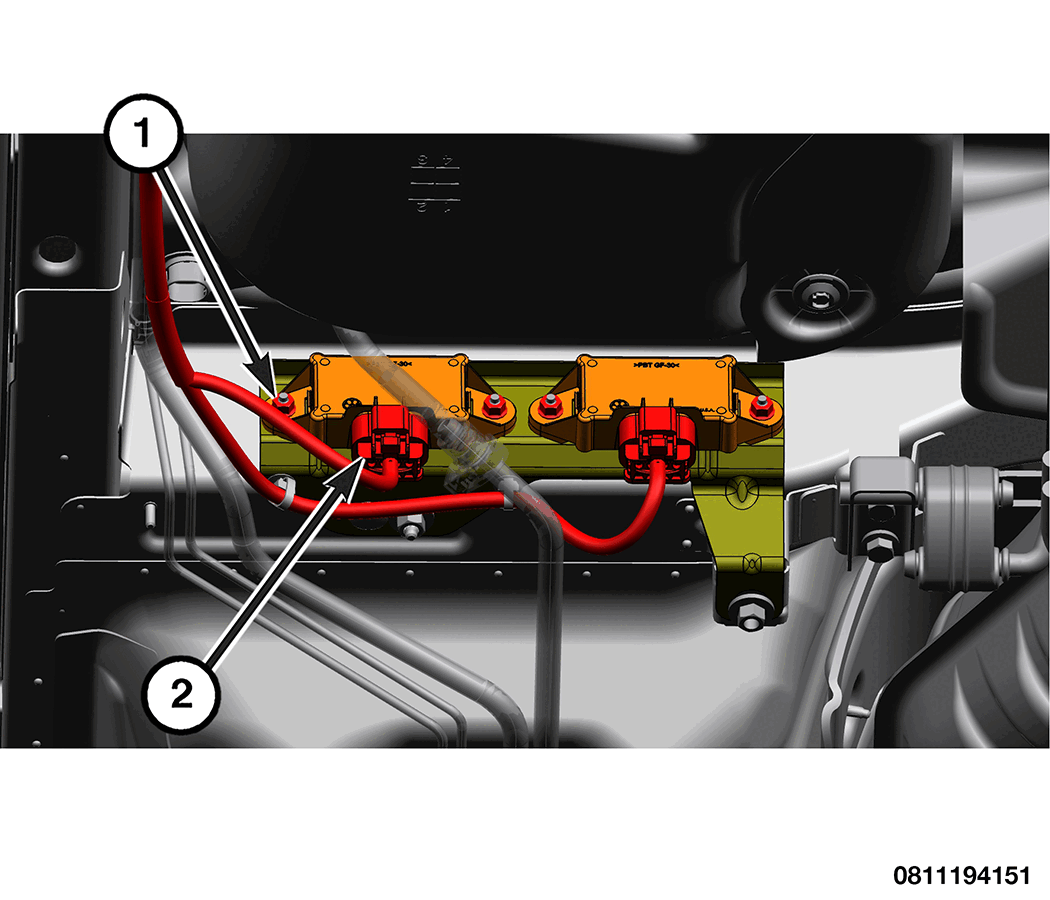

- Install and securely tighten the fuel pump control module fasteners (1).
- Connect the fuel pump control module wire harness connector(s) (2) to the module.

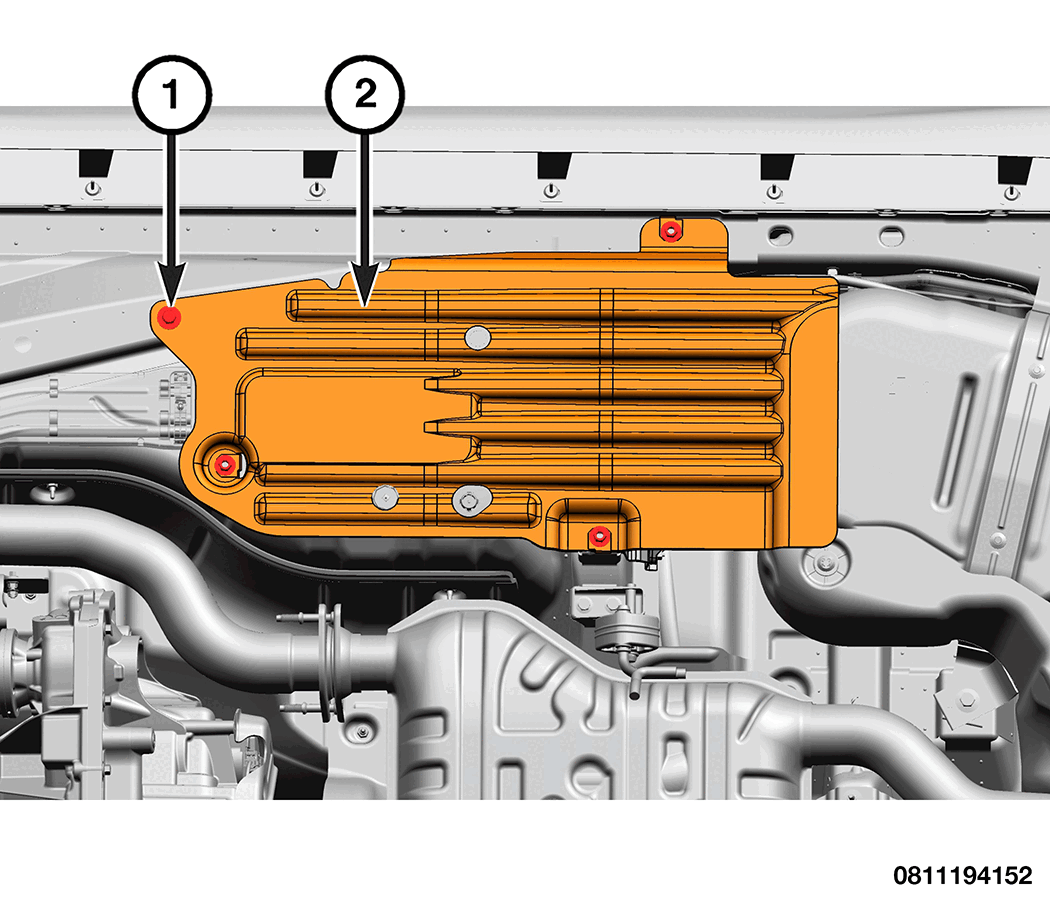

- Install the front fuel tank shield (2) and securely tighten the fasteners (1).
- Lower the vehicle.
- Connect the negative battery cable.
