Spring, Front Coil: Removal

GC0158072Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not use any type of pliers on the chrome machined surface of shock/strut rod to assist in the disassembly/assembly of shocks or struts. Use only tools designed to hold the shock/strut rod stationary when servicing shock or strut components.

  1. Remove the shock. Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL .

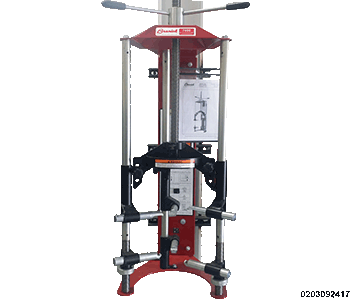

    GC0173684Courtesy of CHRYSLER GROUP, LLC
  2. Install the shock assembly in the Branick 7600® spring removal/installation tool or equivalent.
  3. Compress the spring.
    NOTE:

    The orientation of the upper shock mount (3) in relation to the lower portion of the shock assembly (1) must be maintained during assembly.

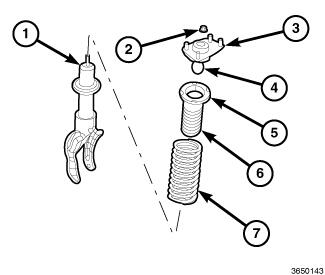

    GC0210301Courtesy of CHRYSLER GROUP, LLC
  4. Remove the upper shock nut (2).
  5. Remove the shock assembly (1).
  6. Remove and inspect the following components for replacement:
