Removal And Installation: Upper

REMOVAL

1. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
2. Remove the lower steering column lower shroud. Refer to SHROUD, REMOVAL AND INSTALLATION .
3. Remove the two close out panels.

   Courtesy of CHRYSLER GROUP, LLC

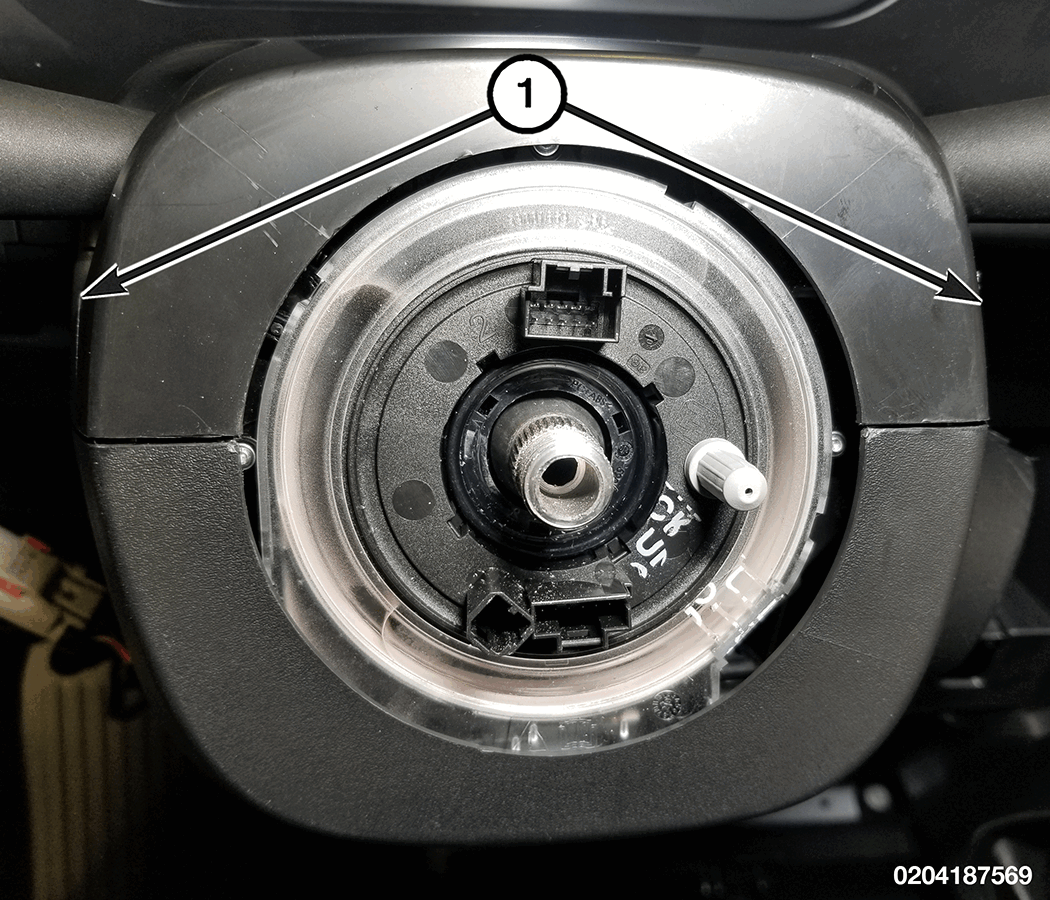

   1 - Close Out Panels

4. Remove the two upper steering column shroud screws.

   Courtesy of CHRYSLER GROUP, LLC

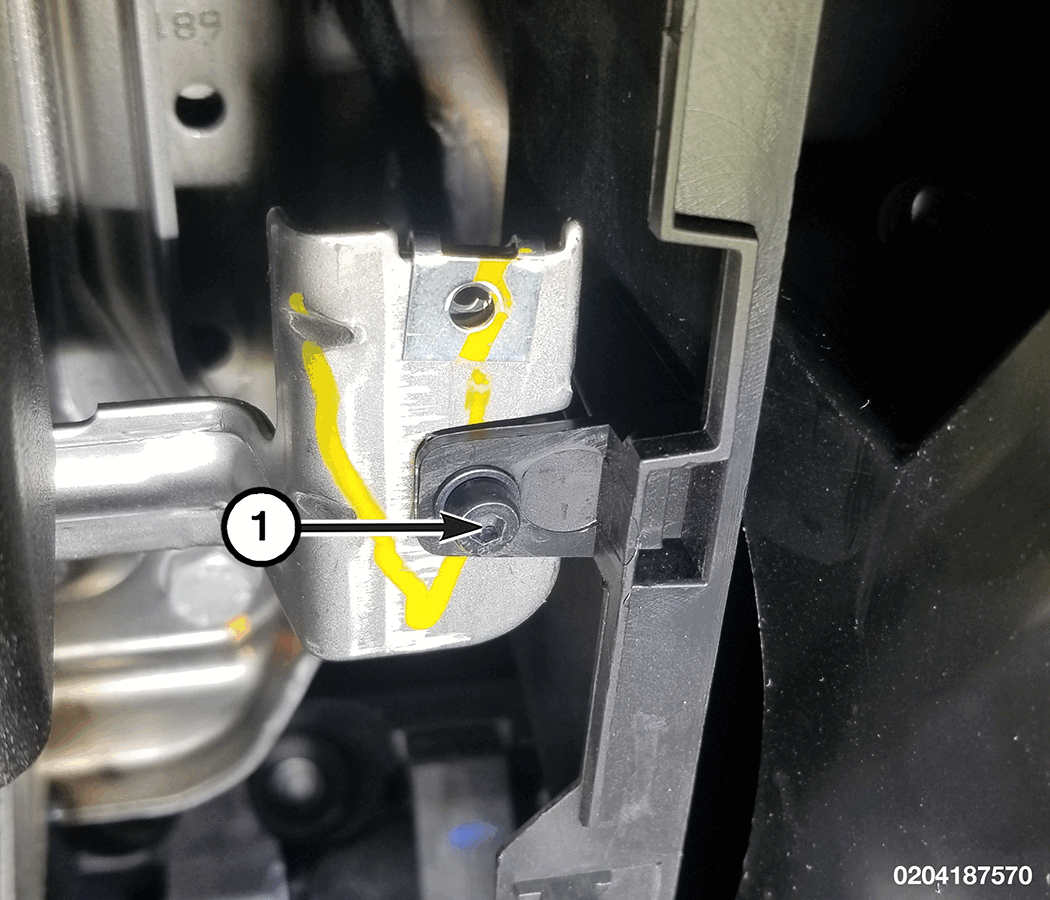

   1 - Upper Steering Column Shroud Screws

5. Remove the upper steering column shroud screw.

   Courtesy of CHRYSLER GROUP, LLC

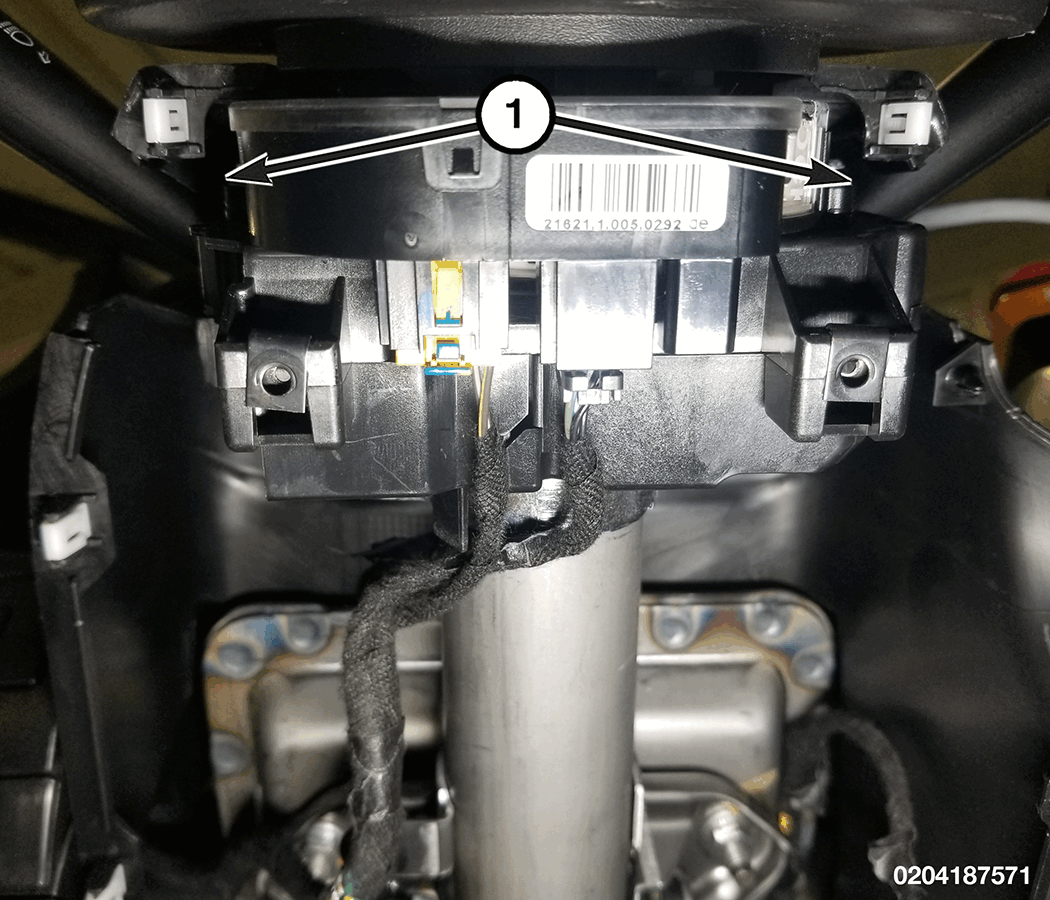

   1 - Upper Steering Column Shroud Screw

6. Remove the upper steering column shroud from the steering column.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
