Battery Disconnect And Connect

DISCONNECT

1. Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
2. Remove the battery access cover.
3. Release the negative battery clamp from the battery post.

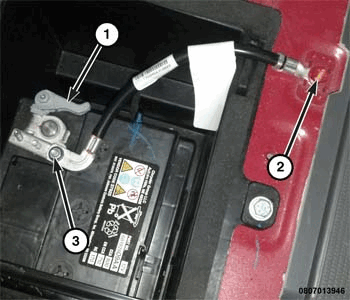

   Courtesy of CHRYSLER GROUP, LLC

   1 - Negative Cable Terminal Clamp

   2 - Ground Cable Nut

   3 - Battery Terminal Nut

CONNECT

1. Position the battery clamp to the negative battery cable.
2. Connect the negative battery cable on the battery terminal.
