Side - B-Pillar
REMOVAL
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury, never strike or drop the side impact sensor, as it can damage the impact sensor or affect its calibration. The side impact sensor enables the system to deploy the side curtain supplemental restraints. If an impact sensor is accidentally dropped during service, the sensor must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper side supplemental restraint deployment.
- Disconnect and isolate the negative battery cable. Wait two minutes for the system capacitor to discharge before further service.
- Remove the trim from the inside of the right or left B-pillar. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION
and/or PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION
.

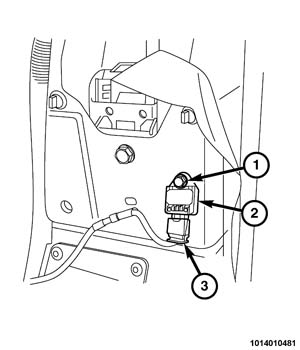

1 - Screw 2 - Side Impact Sensor 3 - Body Wire Harness Connector - Disconnect the body wire harness connector from the side impact sensor connector receptacle.
- Remove the screw that secures the side impact sensor to the inner B-pillar.
- Disengage the locating and anti-rotation pin of the sensor from the clearance hole in the inner B-pillar.
- Remove the side impact sensor from the vehicle.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury, never strike or drop the side impact sensor, as it can damage the impact sensor or affect its calibration. The side impact sensor enables the system to deploy the side curtain supplemental restraints. If an impact sensor is accidentally dropped during service, the sensor must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper side supplemental restraint deployment.
- Be certain that the locating and anti-rotation pin on the back of the sensor is engaged in the clearance hole in the inner B-pillar.
- Install and tighten the screw that secures the sensor to the inner B-pillar. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to SUPPLEMENTAL RESTRAINT SYSTEM VERIFICATION TEST .
