Module, Power Inverter: Installation

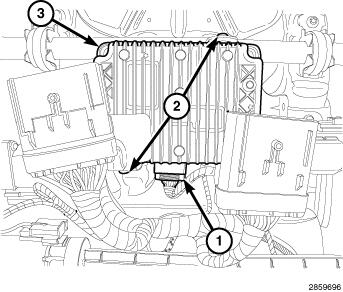

  1. Slide and install the power inverter module (3) into the bracket.
    GC0209915Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector (1).
  3. Install the power inverter module fasteners (2).
  4. Install the passenger front seat. Refer to SEAT, FRONT, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
