Button, Start/Stop: Installation
NOTE:
The START/STOP button should only be removed or installed with the ignition off.

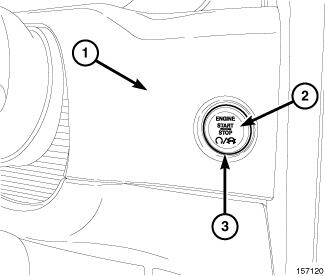

- Position the START/STOP button (2) with the lettering in the horizontal position.
 Courtesy of CHRYSLER GROUP, LLC
|
- Insert the button into the receptacle on the instrument panel (1) and gently press on the chrome bezel ring (3) to seat the button in the receptacle.
