Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

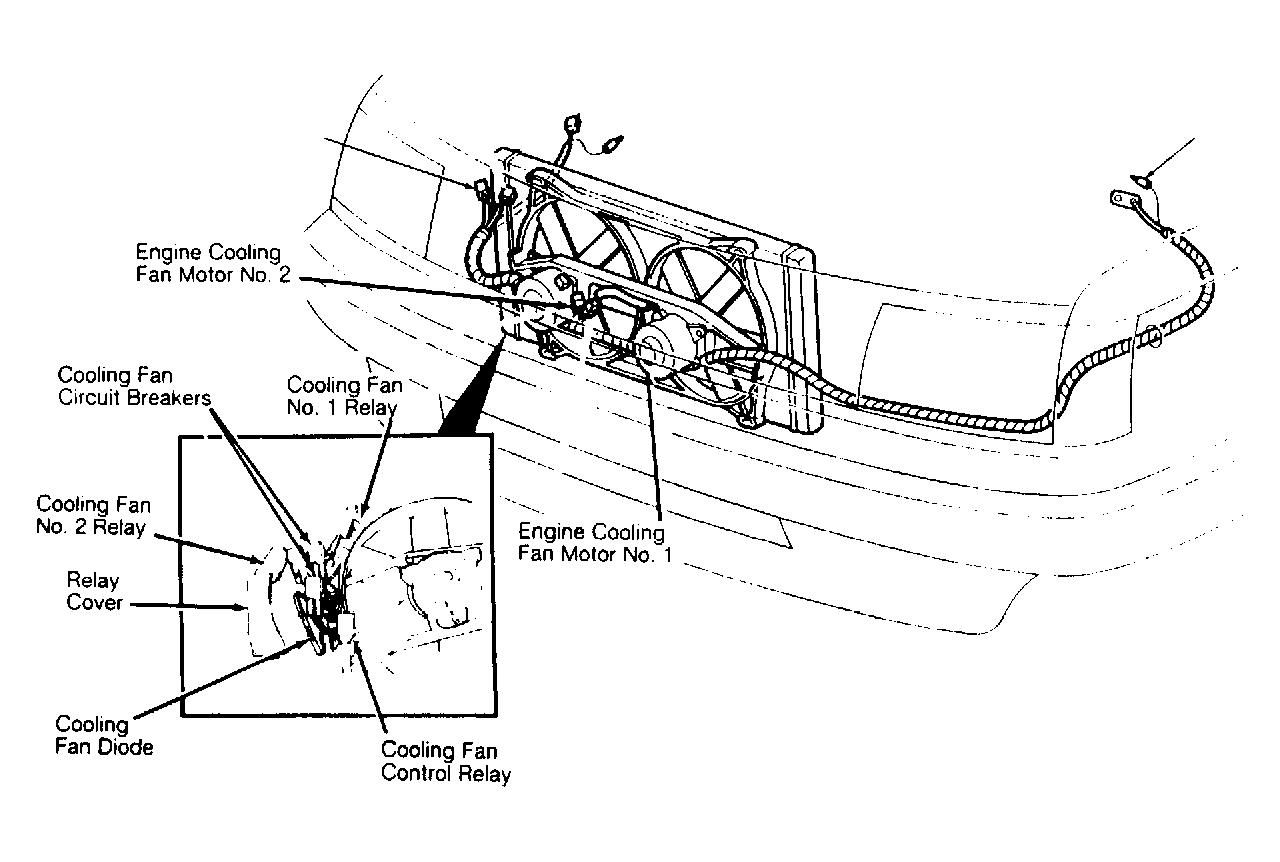

| Cooling Fan Circuit Breakers (2) |
Under relay cover, by cooling fan. See Figure
. |
| Fuse Panel |
Under left side of dash. |
| Main Fuse (100 amp) |
On left strut tower. See Figure
. |
| Relay Panel |
Under left side of dash. See Figure
. |
