Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

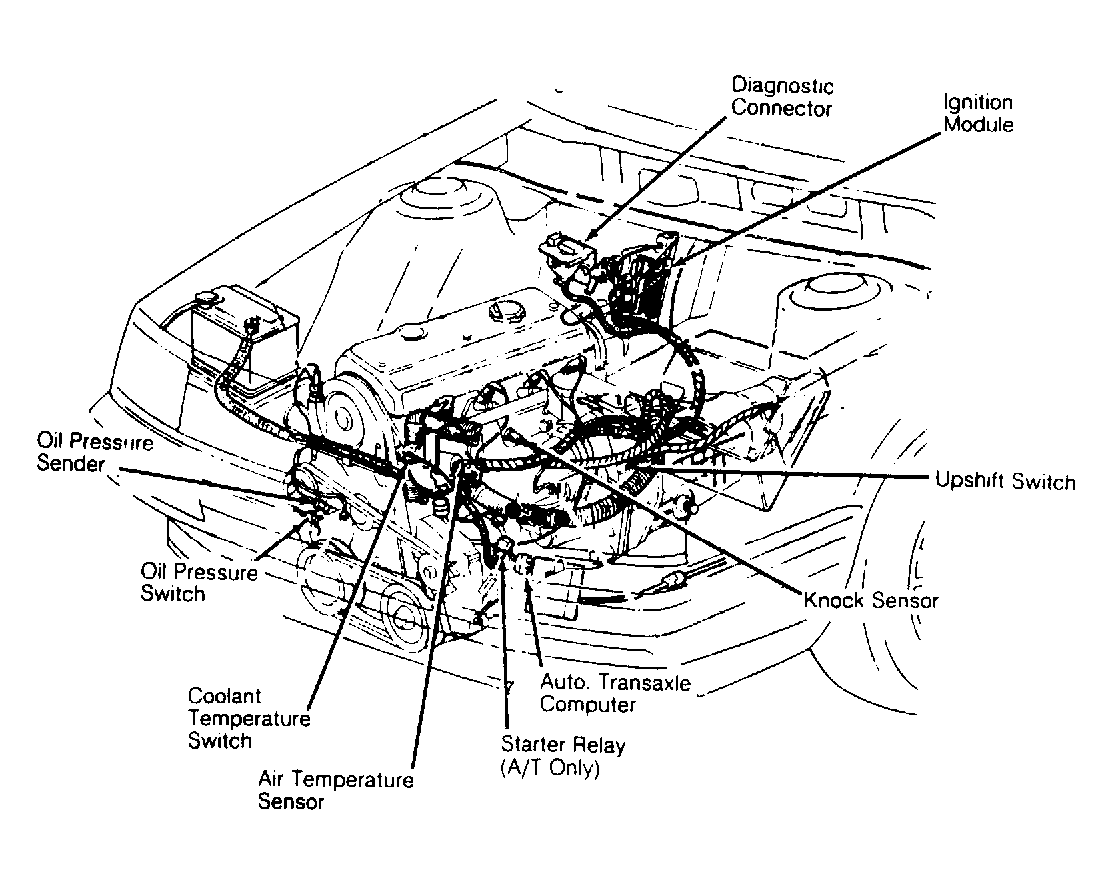

| Auto. Transaxle Computer | Lower left front of engine bay. See Figure . |

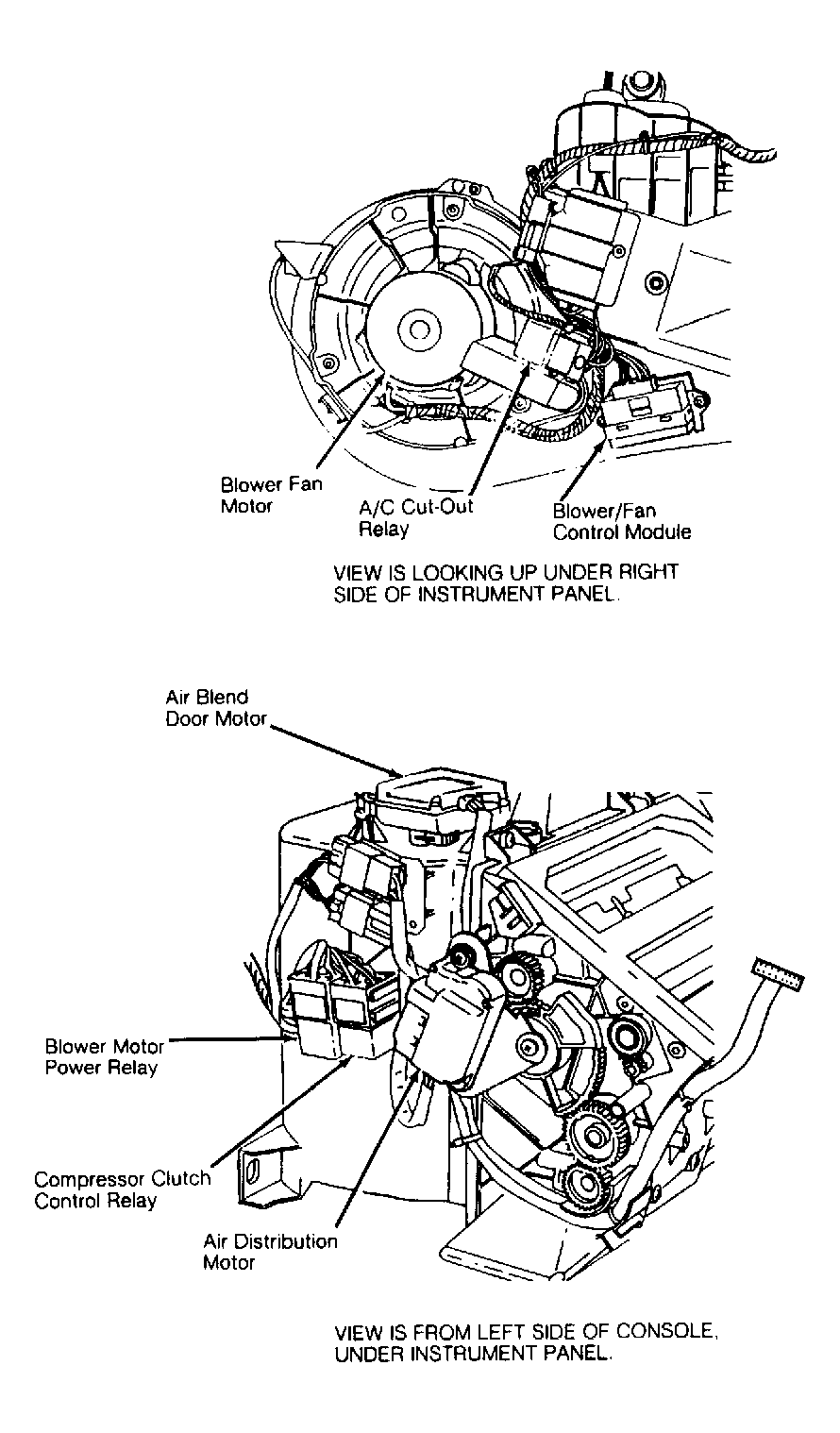

| Blower Fan Control Module | Under right side of dash, by blower motor housing. See Figure . |
| Cruise Control Module | Behind left kick panel, under carpet. |

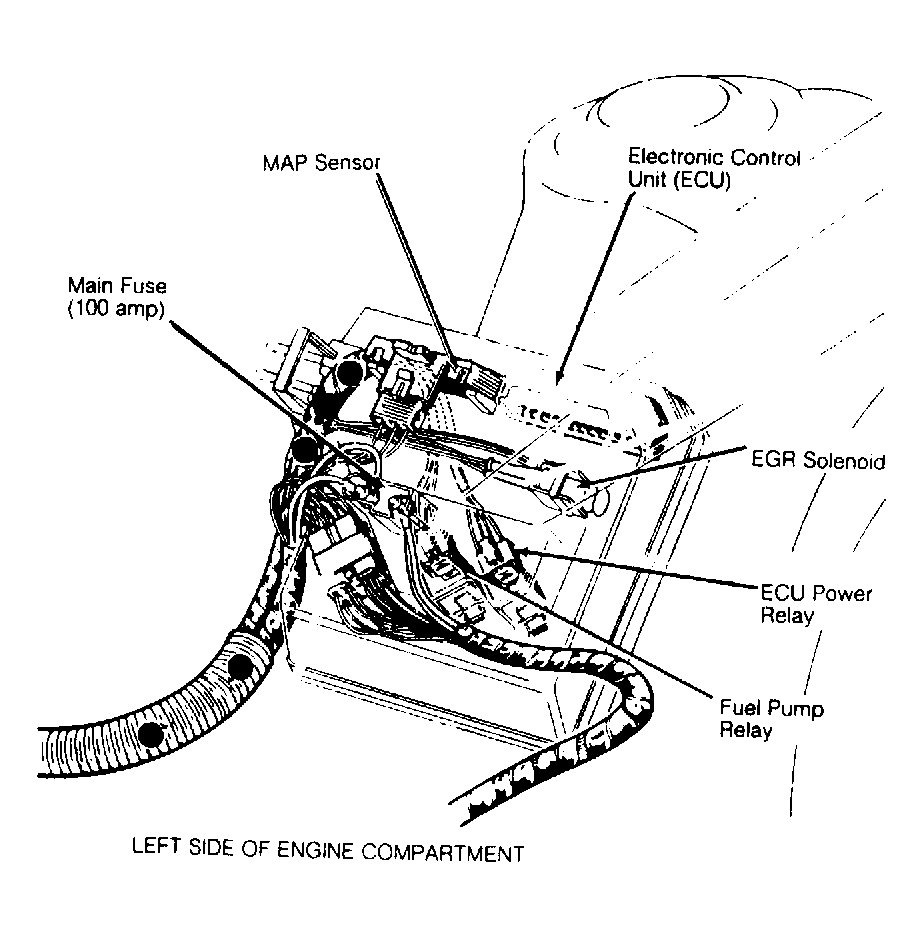

| Electronic Control Unit (ECU) | On left front strut tower. See Figure . |

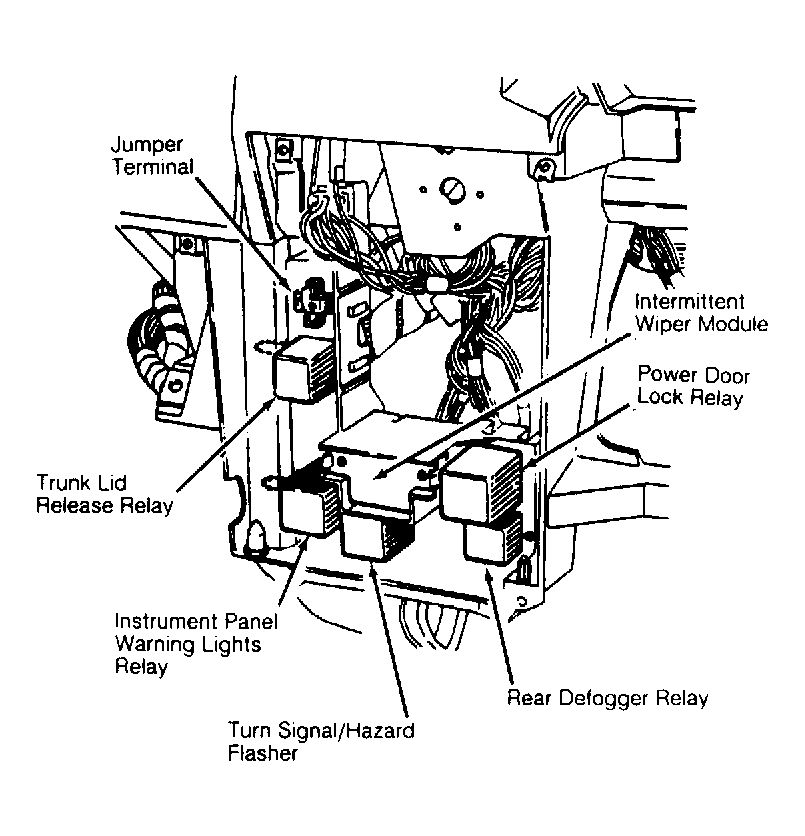

| Intermittent Wiper Module | On relay panel. See Figure . |
