Fault 1017 - High Mat Sensor Line

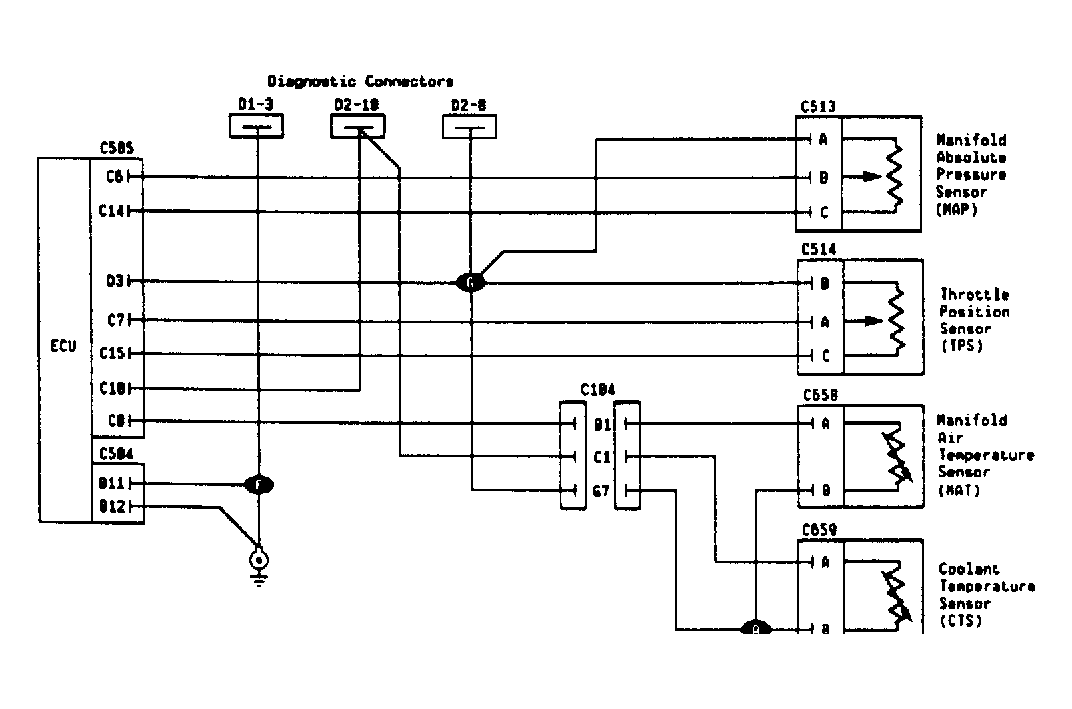

Fig 1: Fault 1017 (1 of 3) - MAT Sensor Schematic

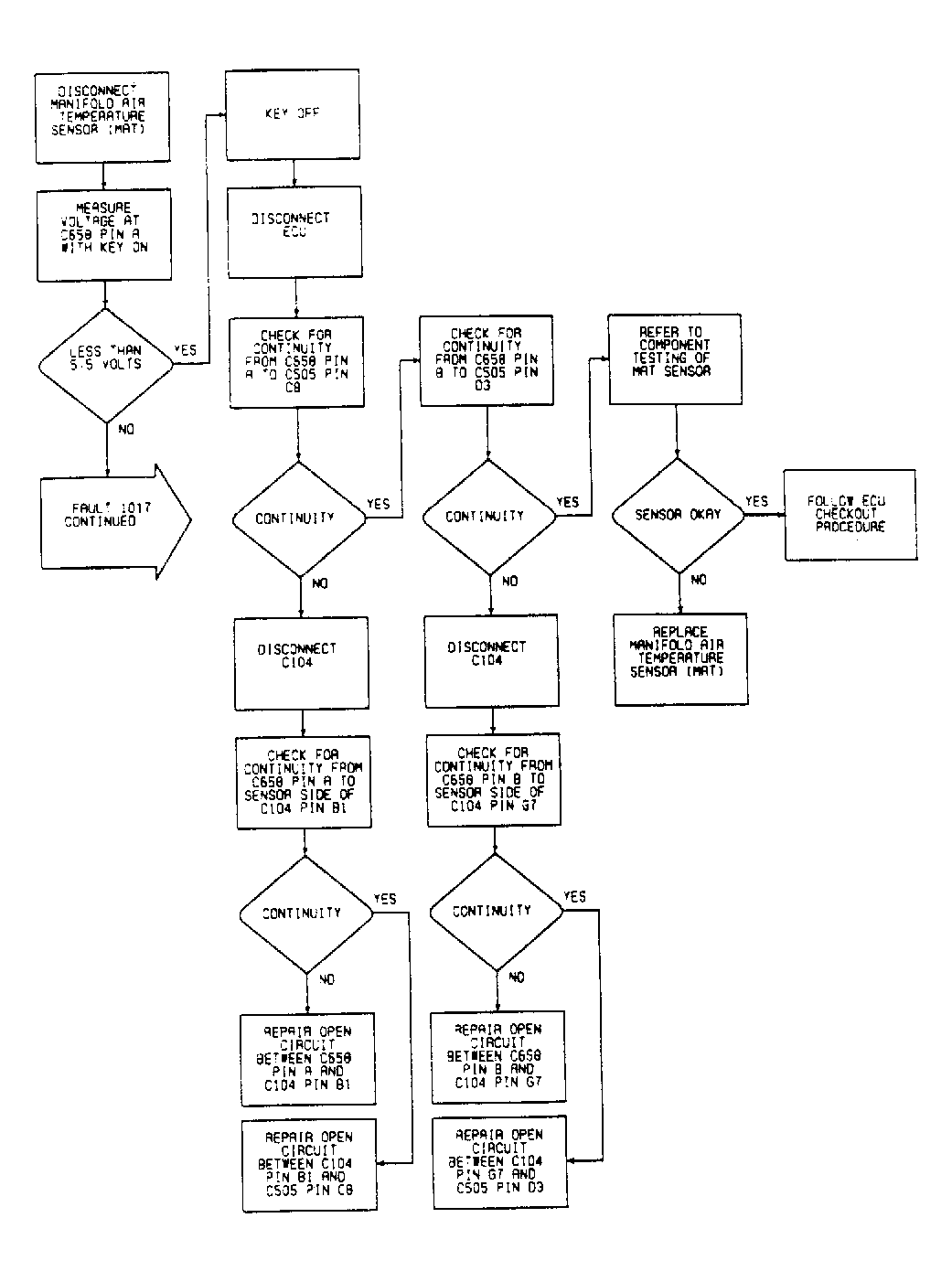

Fig 2: Fault 1017 (2 of 3) - MAT Sensor Line High Flow Chart

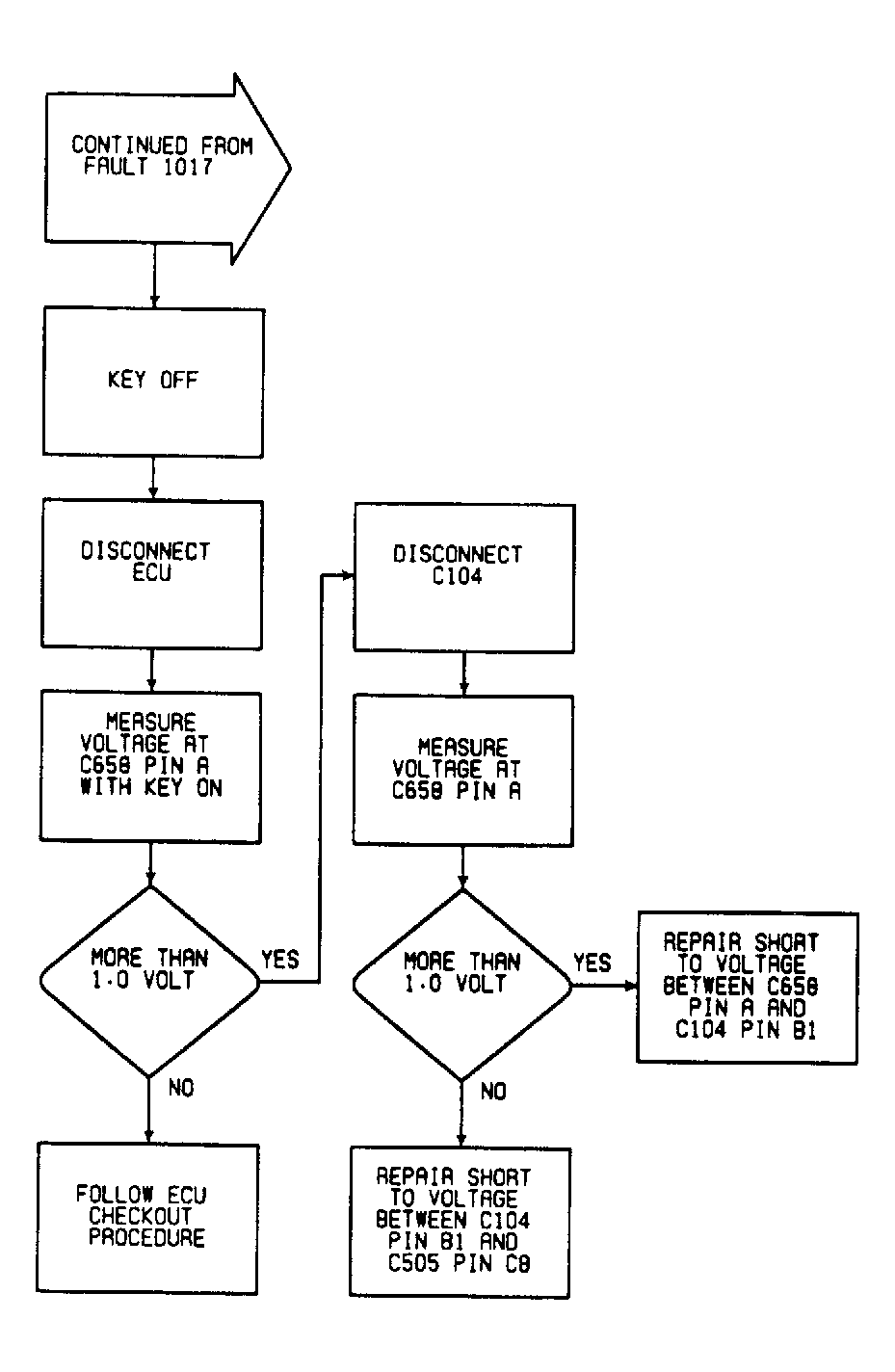

Fig 3: Fault 1017 (3 of 3) - MAT Sensor Line High Flow Chart
