Fault 1022 - Start Line Low

Fig 1: Fault 1022 (1 of 3) - Starting System Schematic

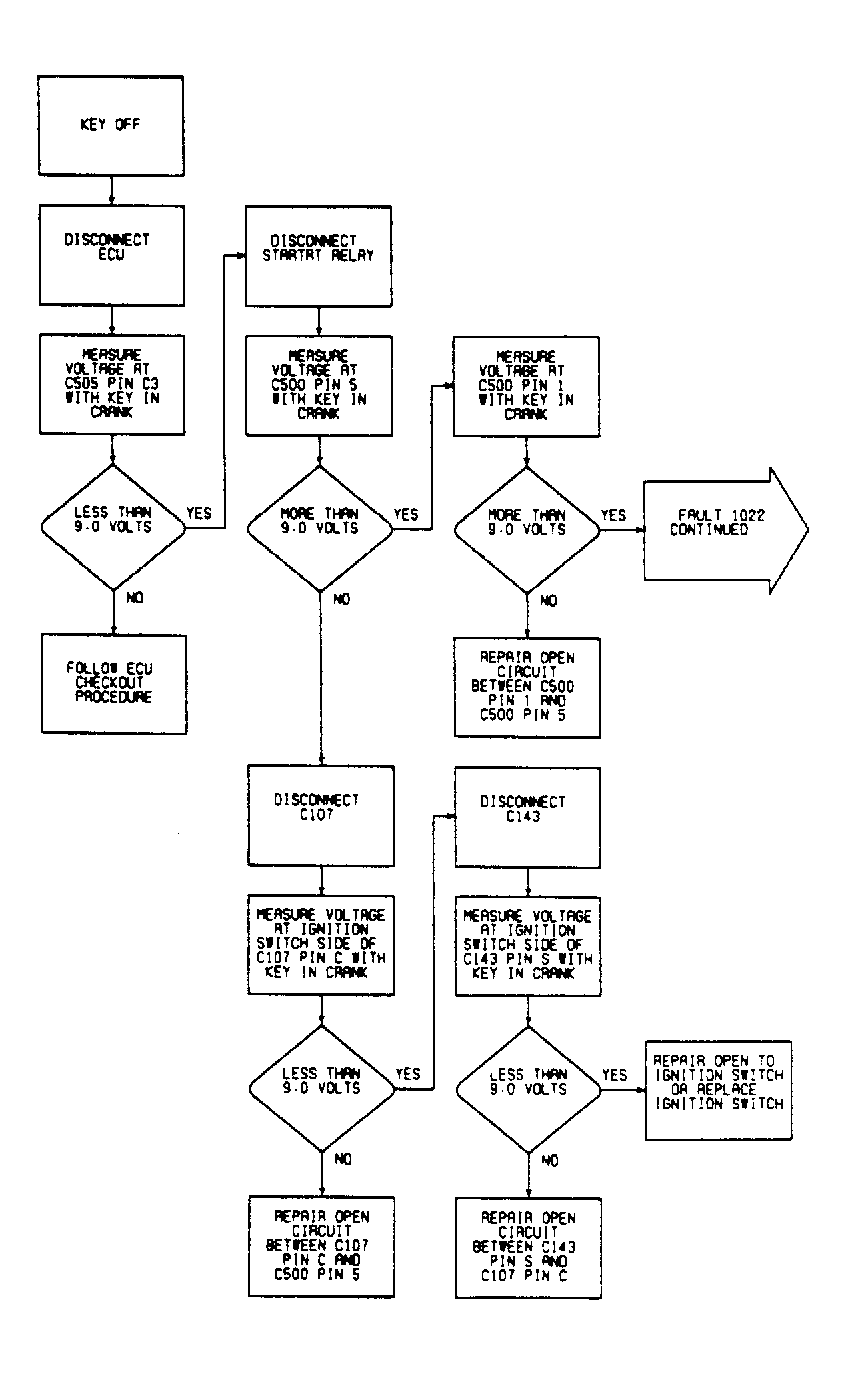

Fig 2: Fault 1022 (2 of 3) - Start Line Low Flow Chart

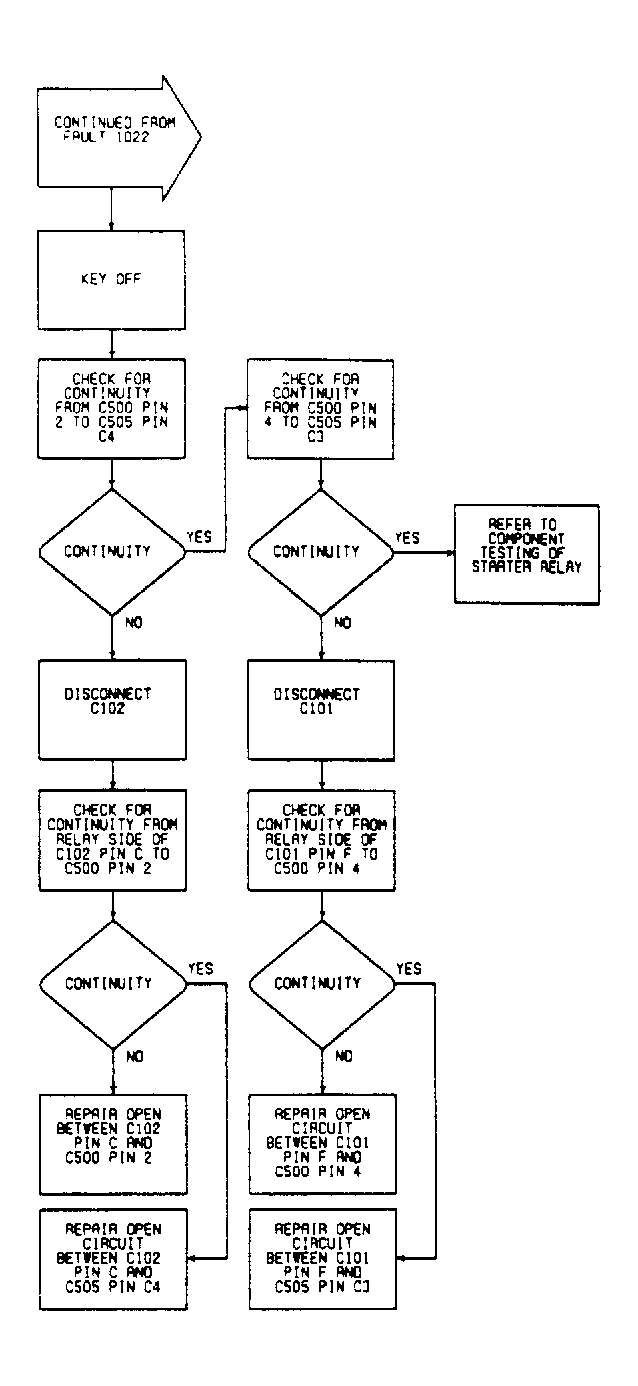

Fig 3: Fault 1022 (3 of 3) - Start Line Low (Cont.) Flow Chart
