Fault 1056 - Inactive Coolant Temperature Sensor

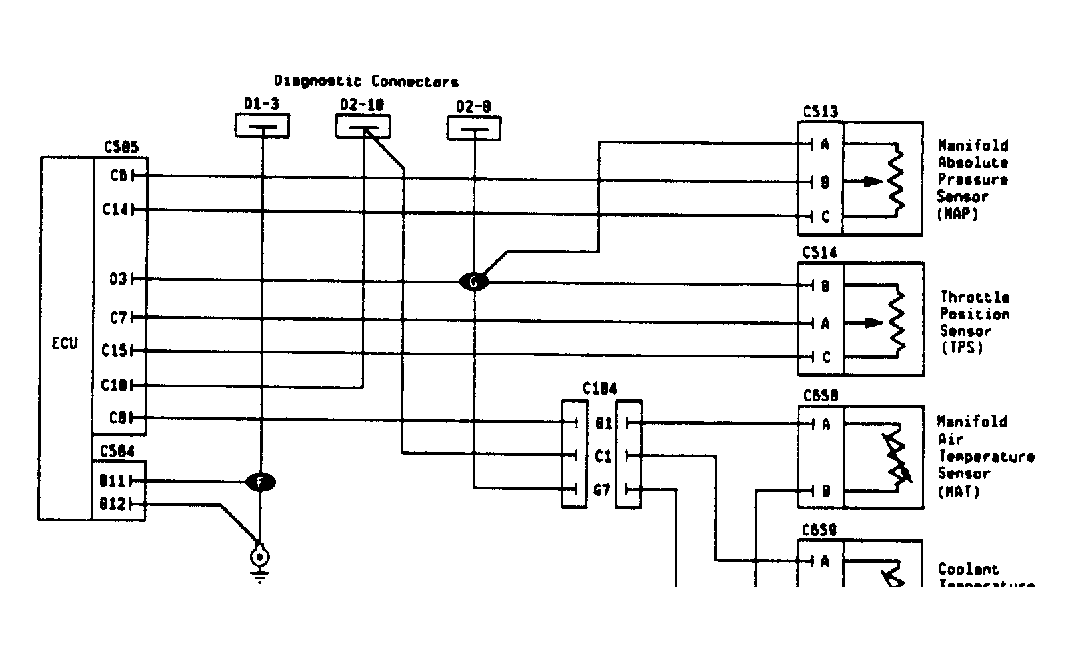

Fig 1: Fault 1056 (1 of 3) - Engine Sensors Schematic

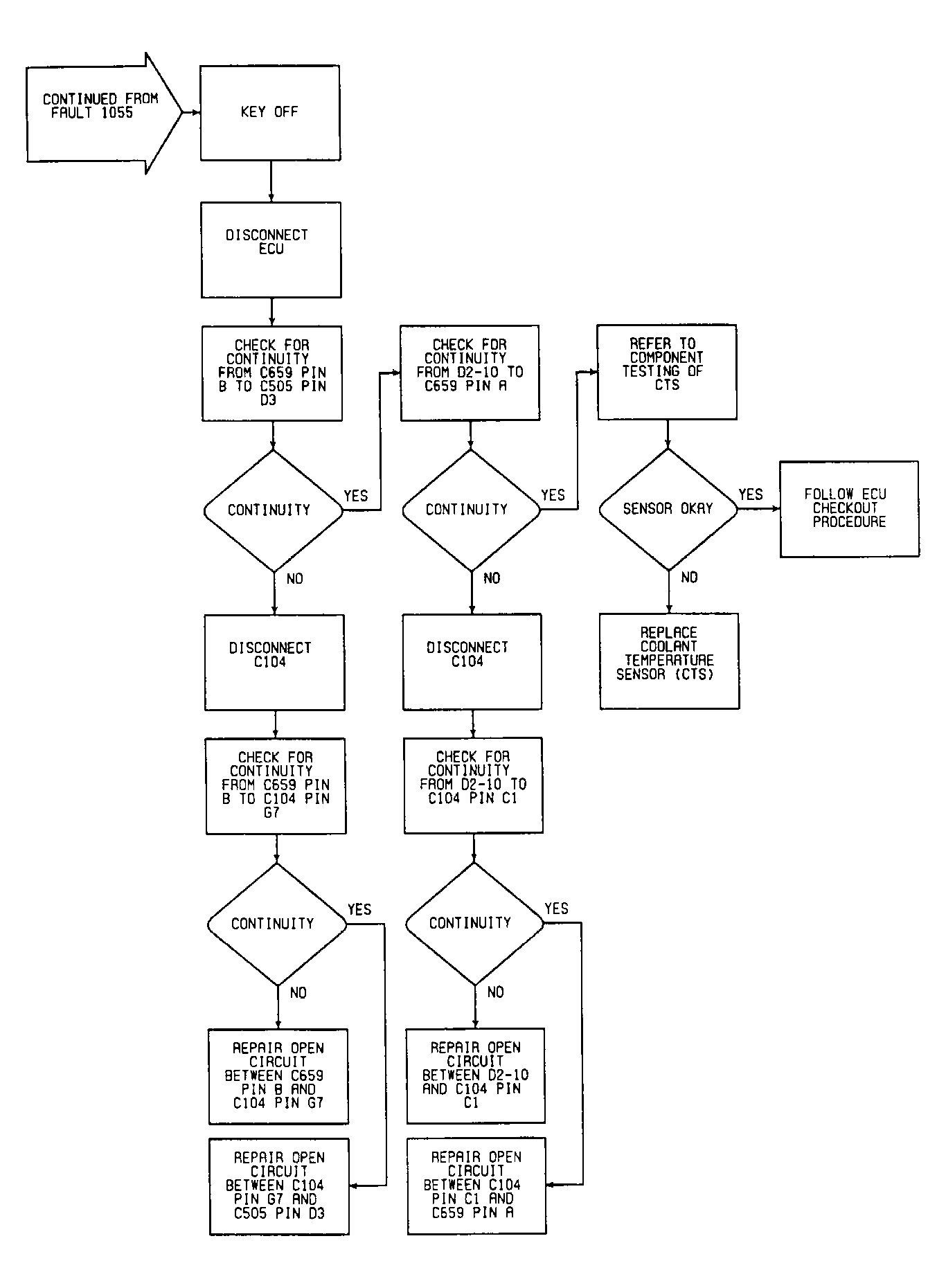

Fig 2: Fault 1056 (2 of 3) - Inactive Coolant Temperature Sensor Flow Chart

Fig 3: Fault 1056 (3 of 3) - Inactive Coolant Temperature Sensor (Cont.) Flow Chart
