Fault 1001 - Ignition Line High

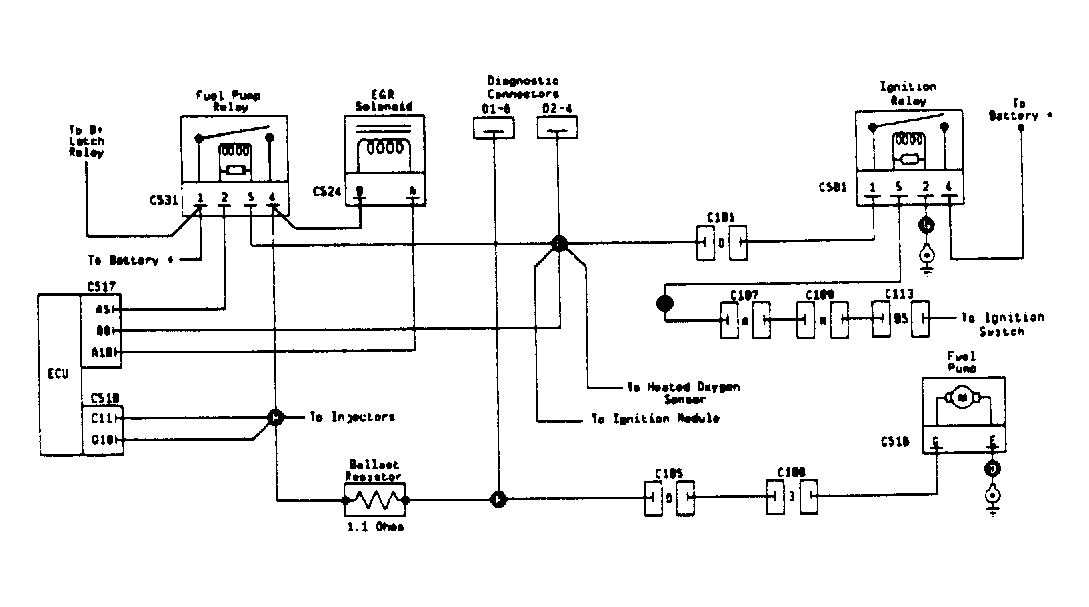

Fig 1: Fault 1001 - Ignition Line High Schematic

Courtesy of CHRYSLER MOTORS

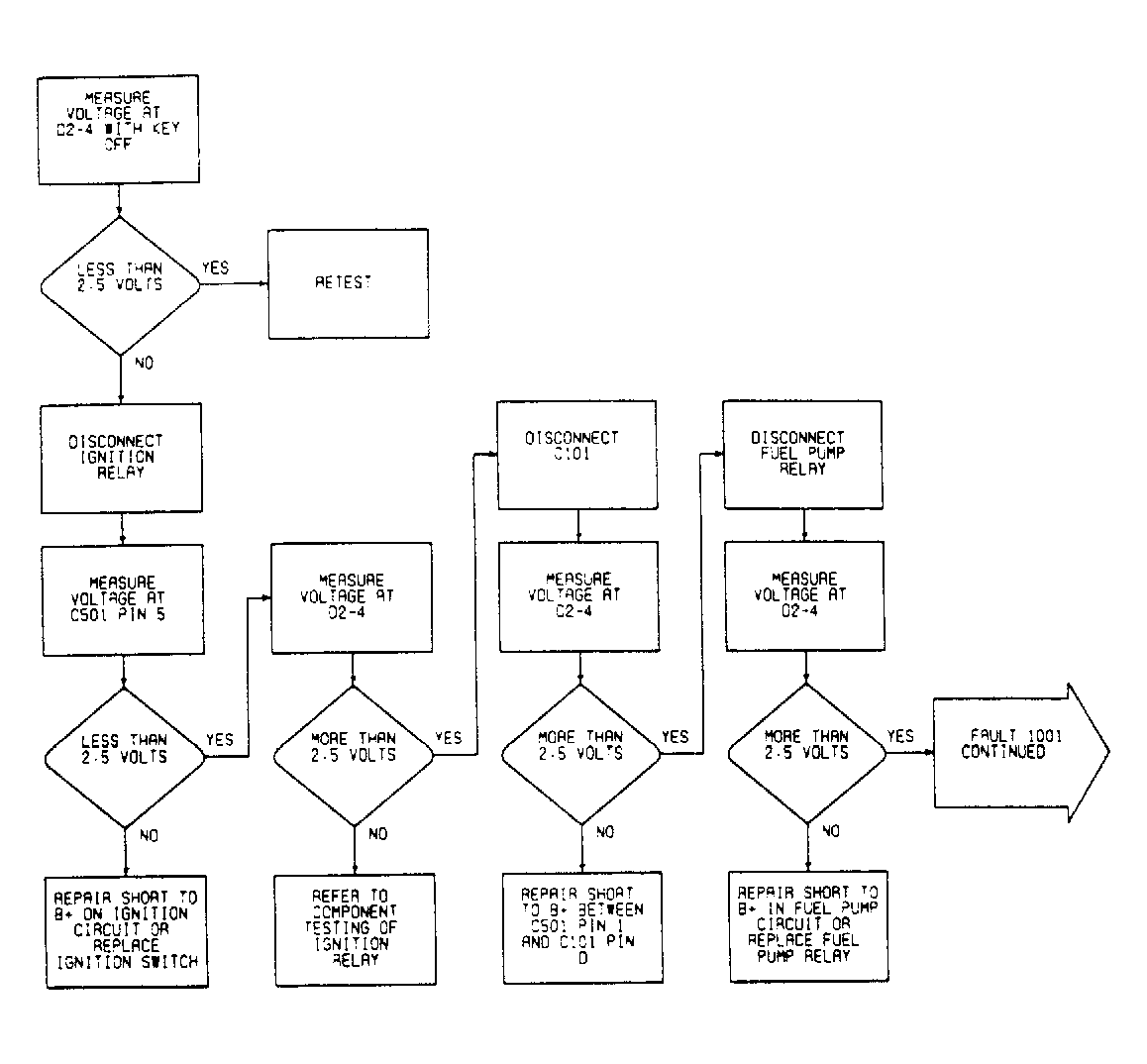

Fig 2: Fault 1001 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

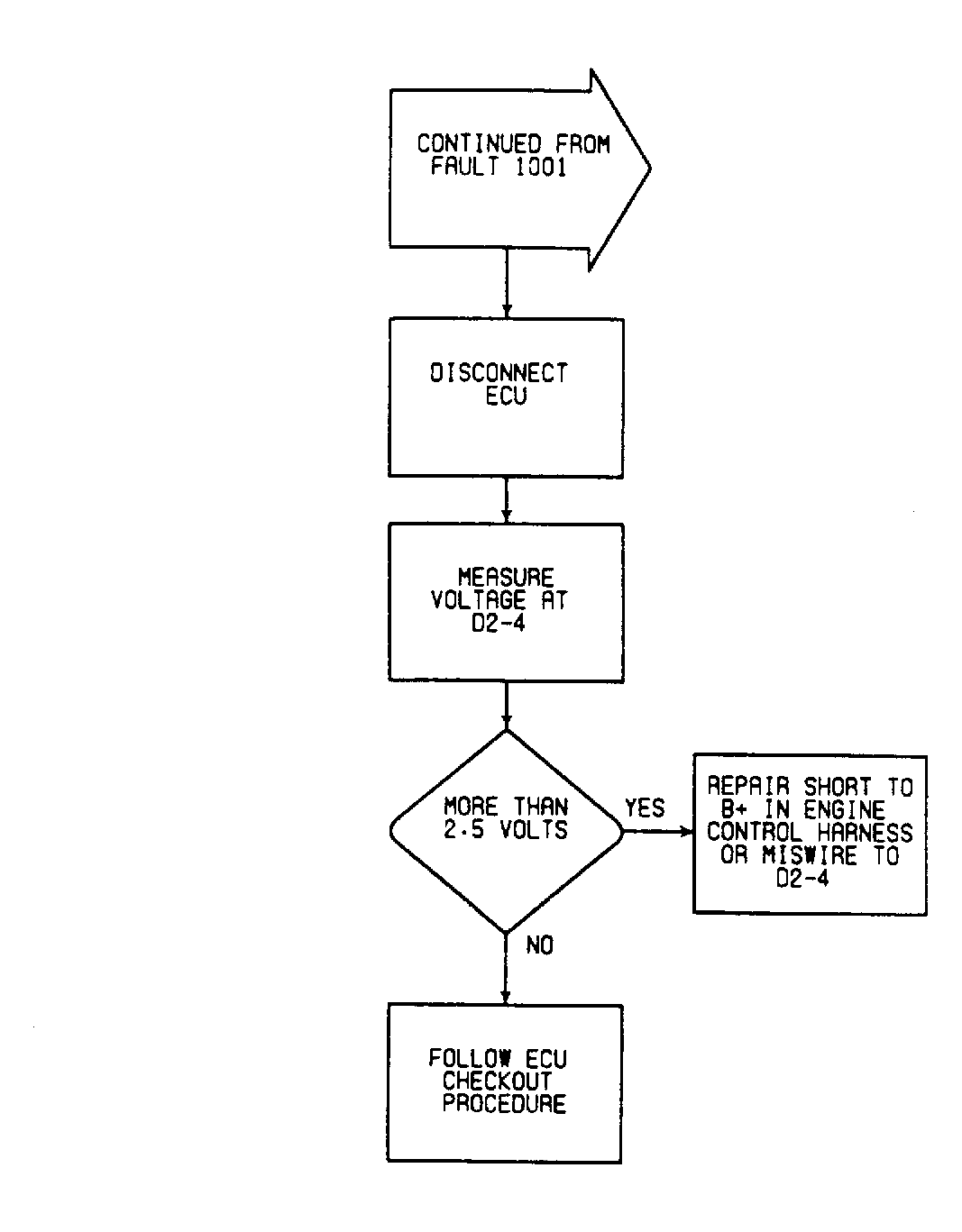

Fig 3: Fault 1001 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
