Fault 1015 - Fuel Pump Line High

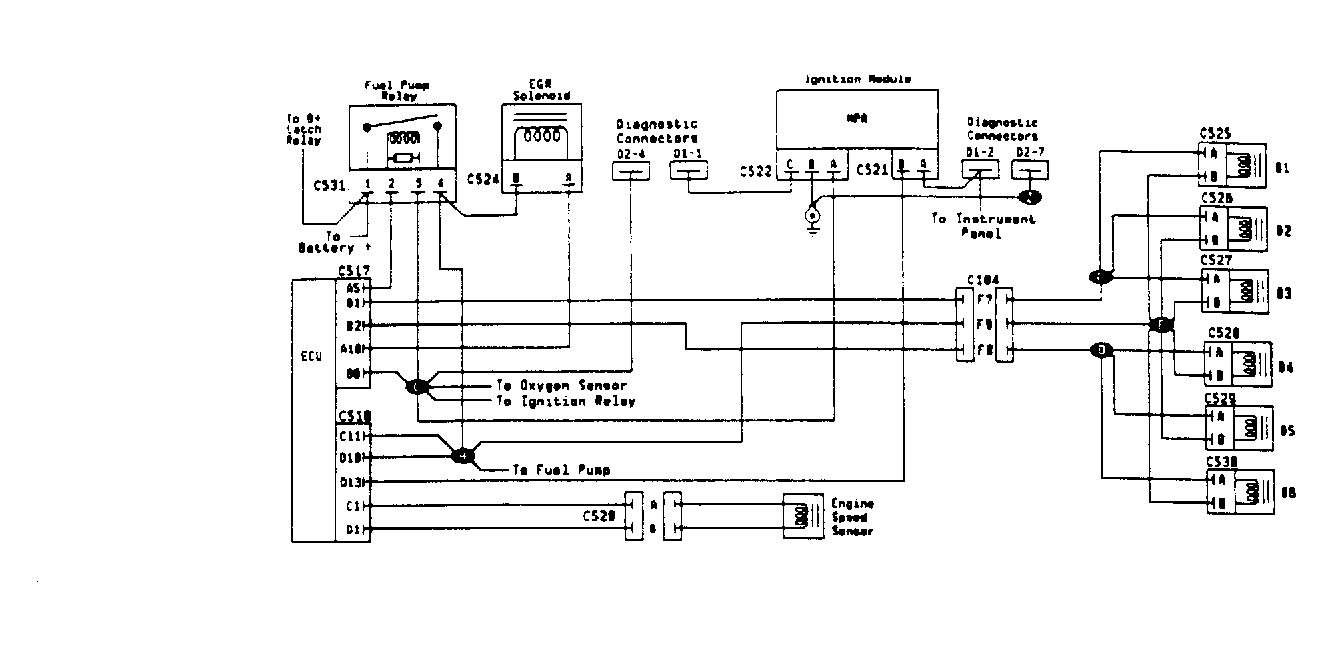

Fig 1: Fault 1015 - Fuel Pump Line High Schematic

Courtesy of CHRYSLER MOTORS

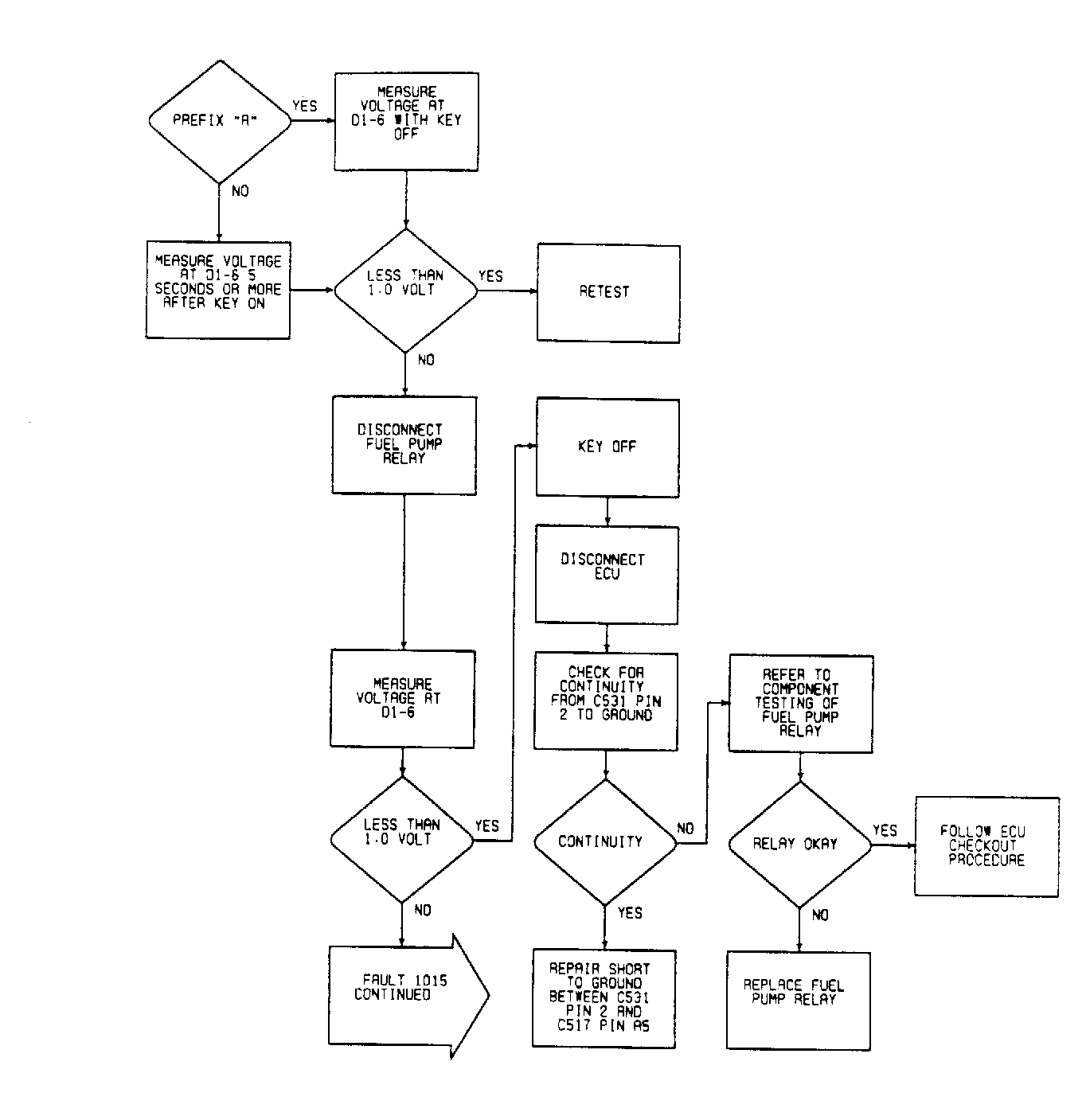

Fig 2: Fault 1015 (1 of 3) - Flow Chart

Courtesy of CHRYSLER MOTORS

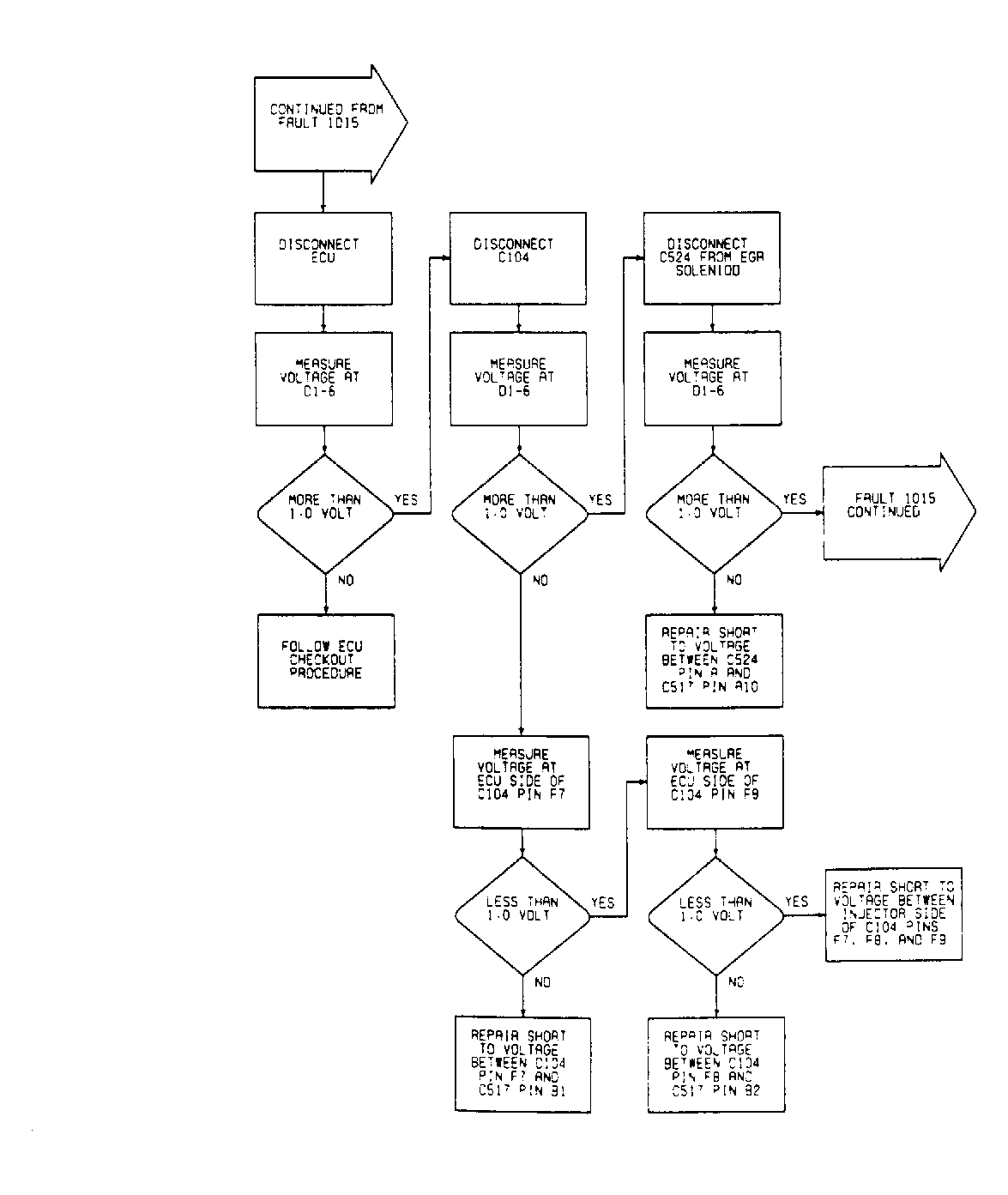

Fig 3: Fault 1015 (2 of 3) - Flow Chart

Courtesy of CHRYSLER MOTORS

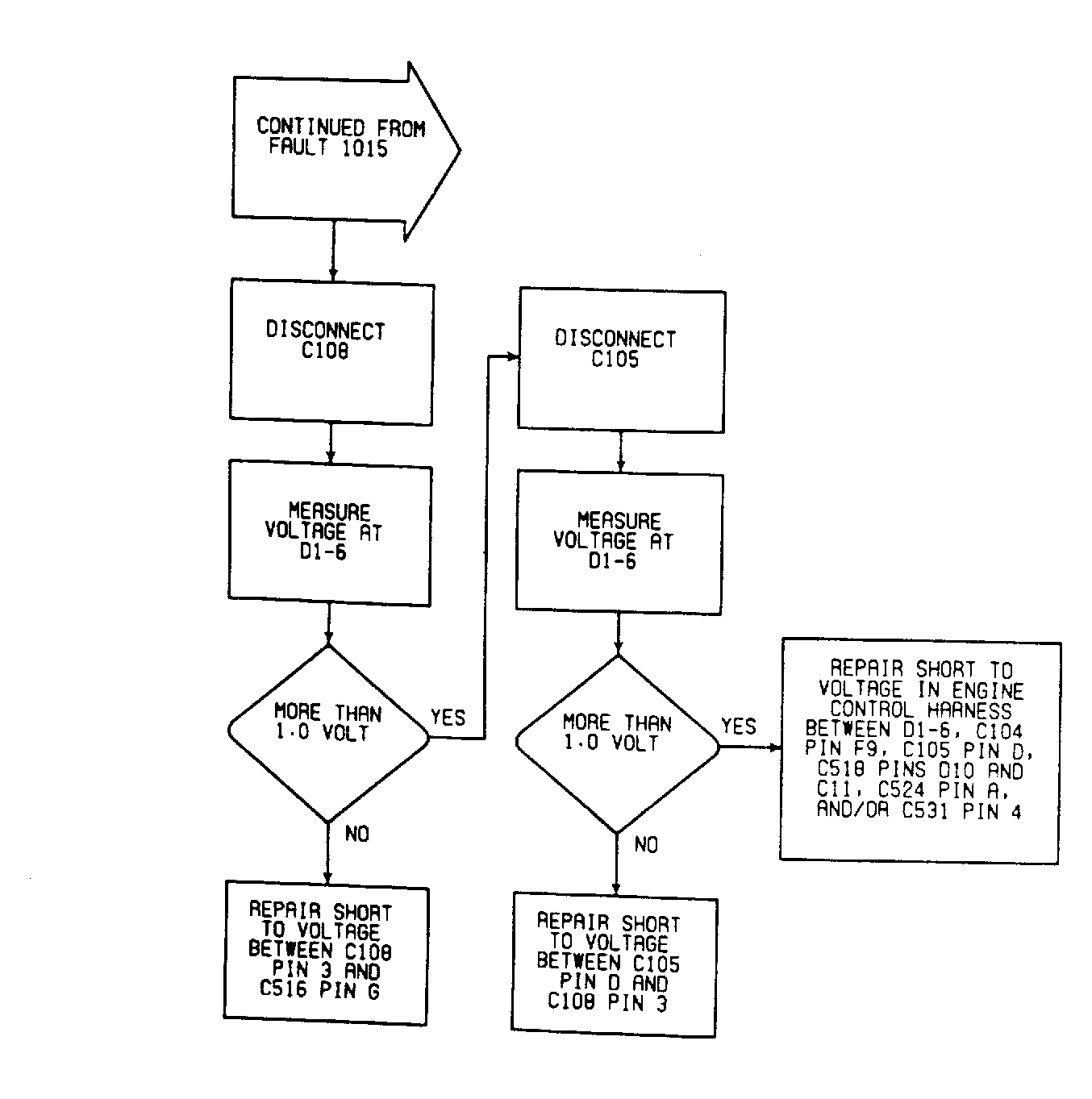

Fig 4: Fault 1015 (3 of 3) - Flow Chart

Courtesy of CHRYSLER MOTORS
