Fault 1022 - Start Line Low

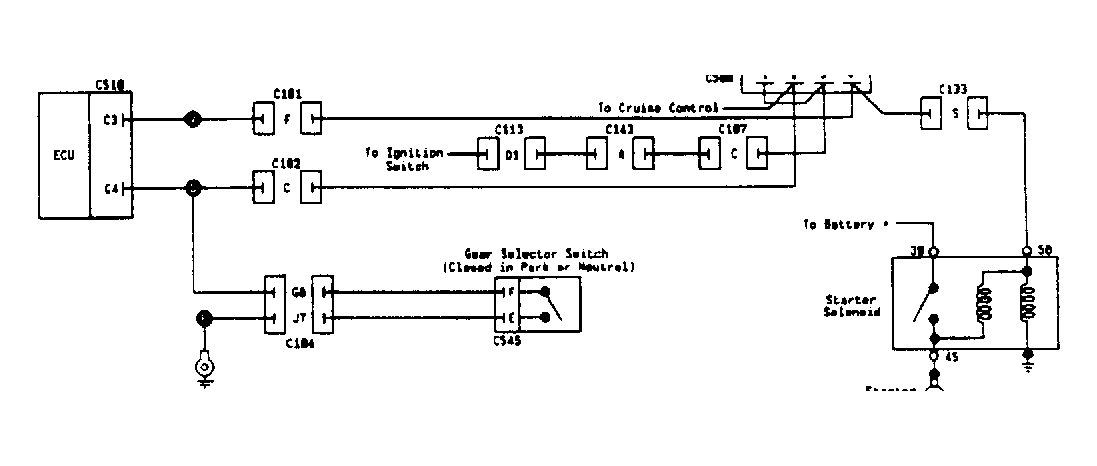

Fig 1: Fault 1022 - Start Line Low Schematic

Courtesy of CHRYSLER MOTORS

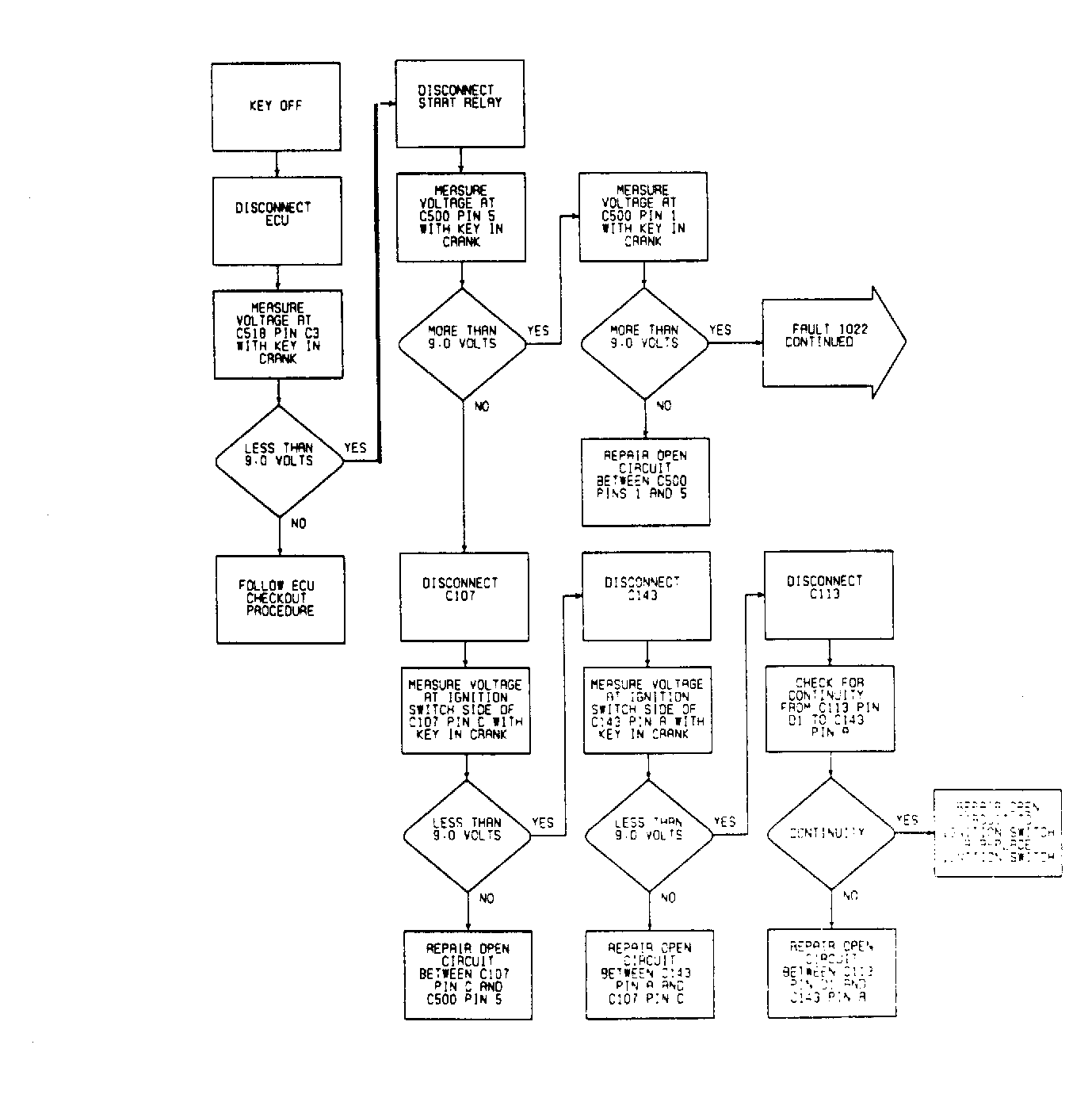

Fig 2: Fault 1022 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

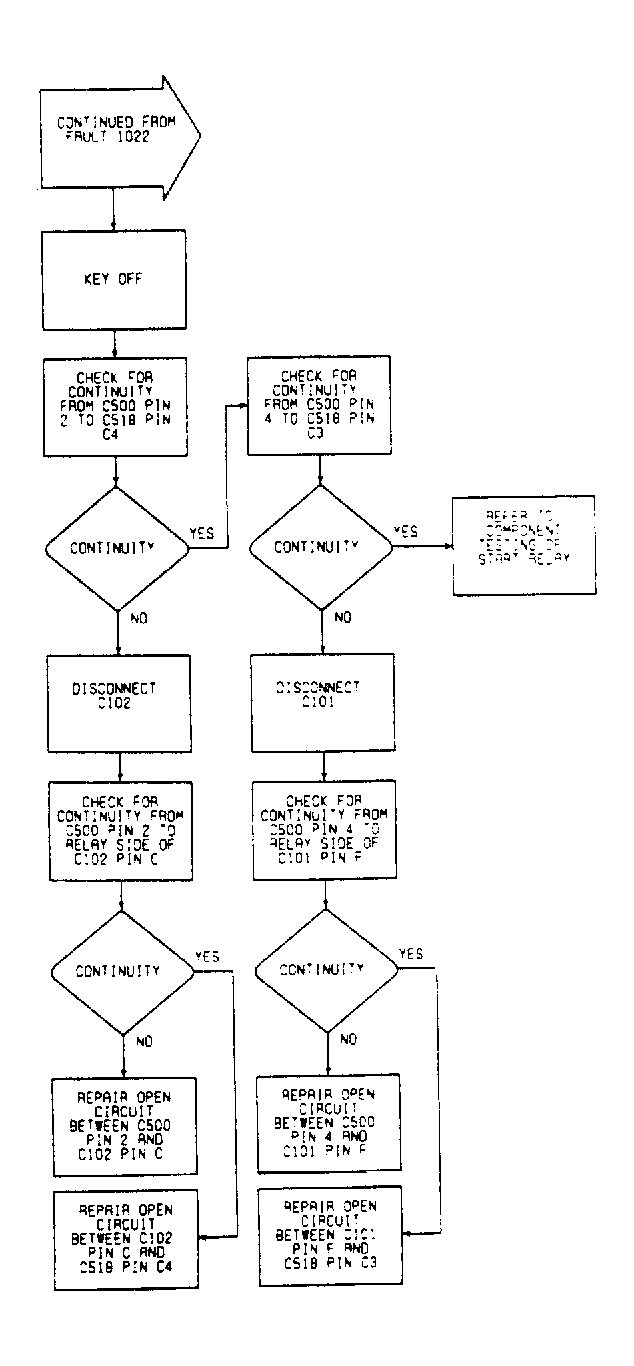

Fig 3: Fault 1022 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
