Fault 1055 - Coolant Temperature Sensor Line High

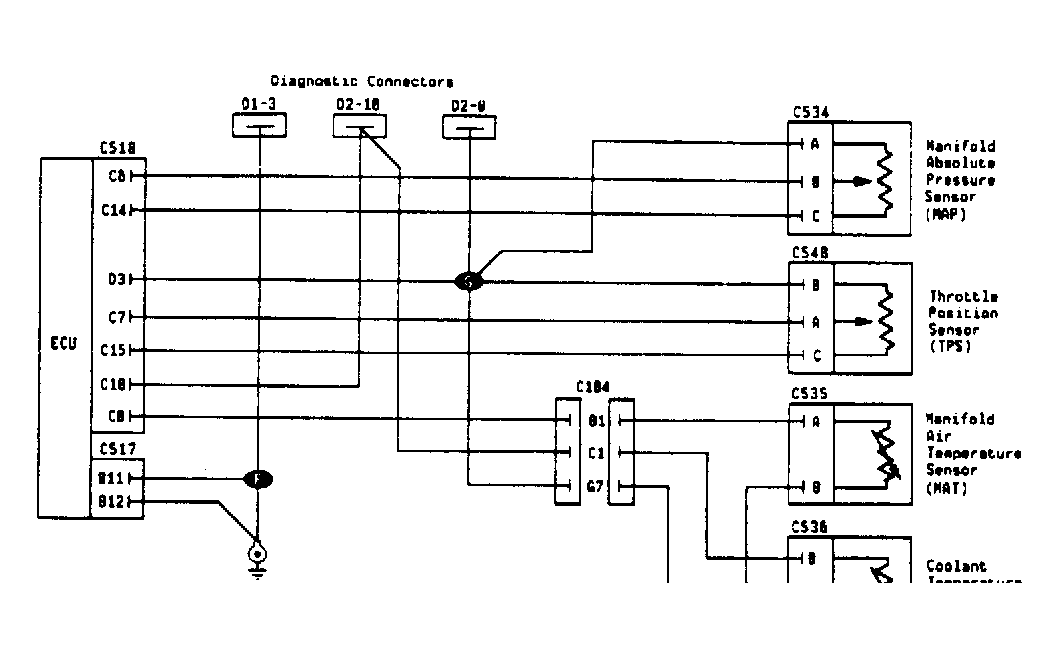

Fig 1: Fault 1055 - Coolant Temp. Sensor Line High Schematic

Courtesy of CHRYSLER MOTORS

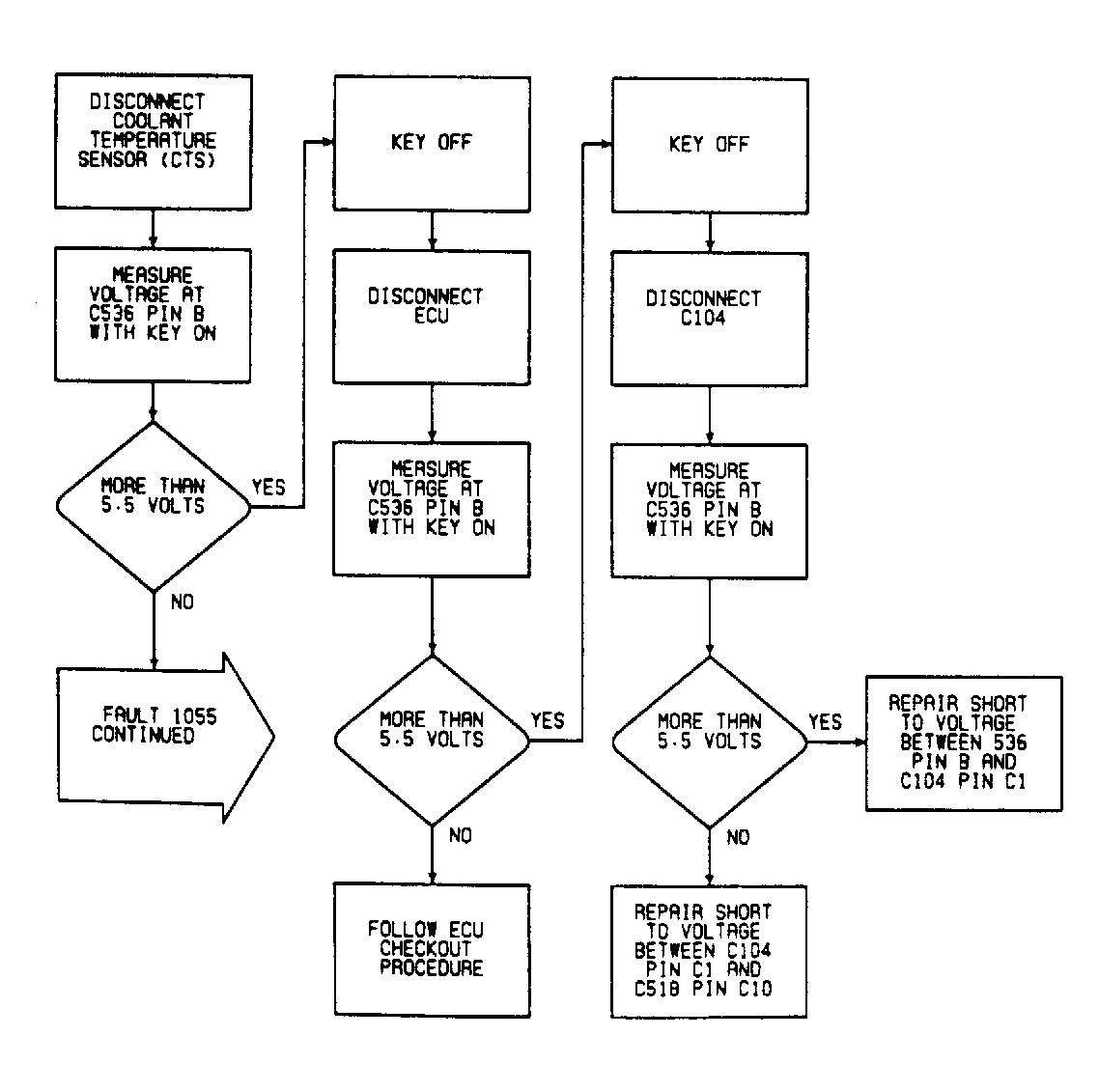

Fig 2: Fault 1055 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

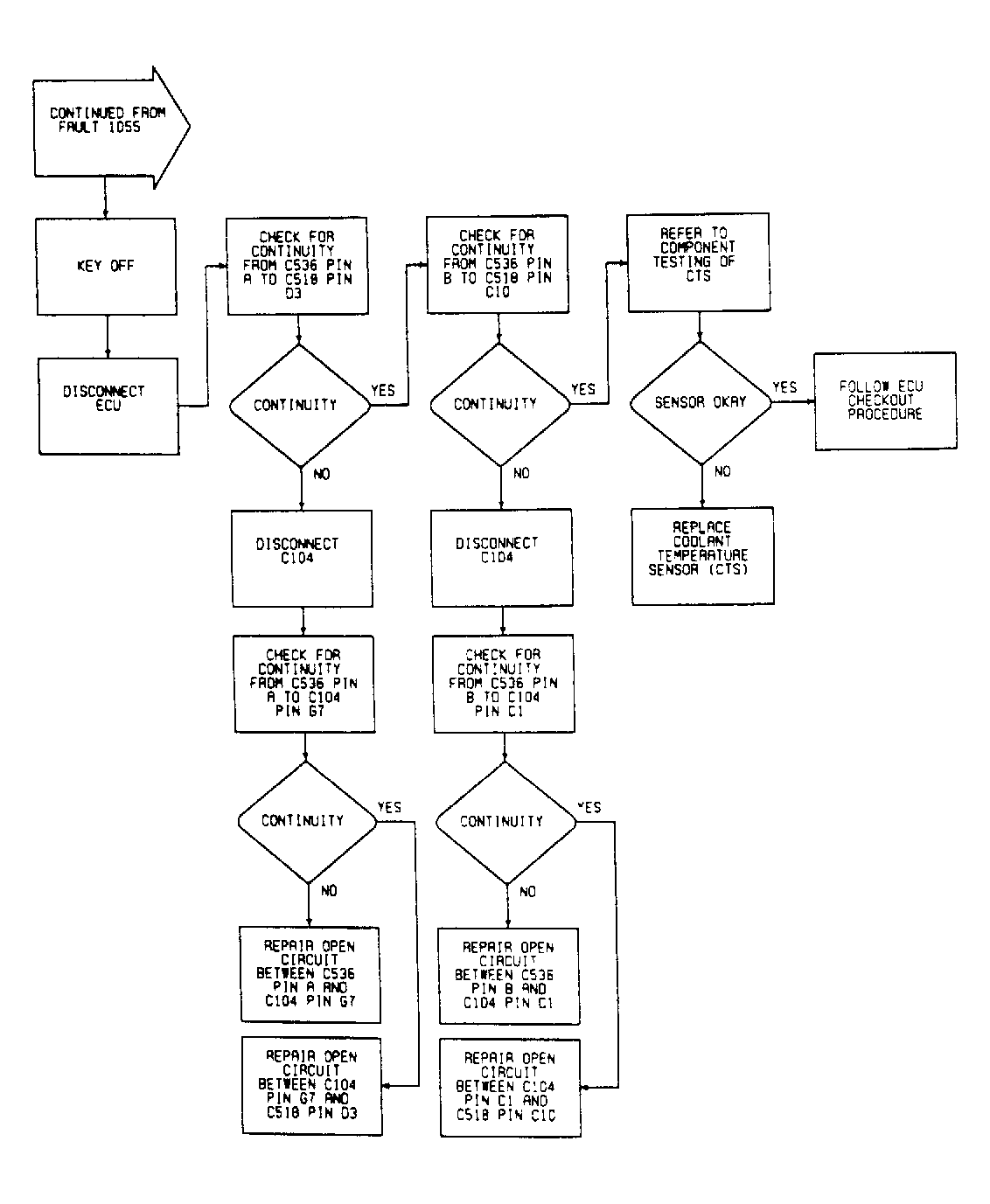

Fig 3: Fault 1055 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
