Fault 1068 - Latch Relay Line High

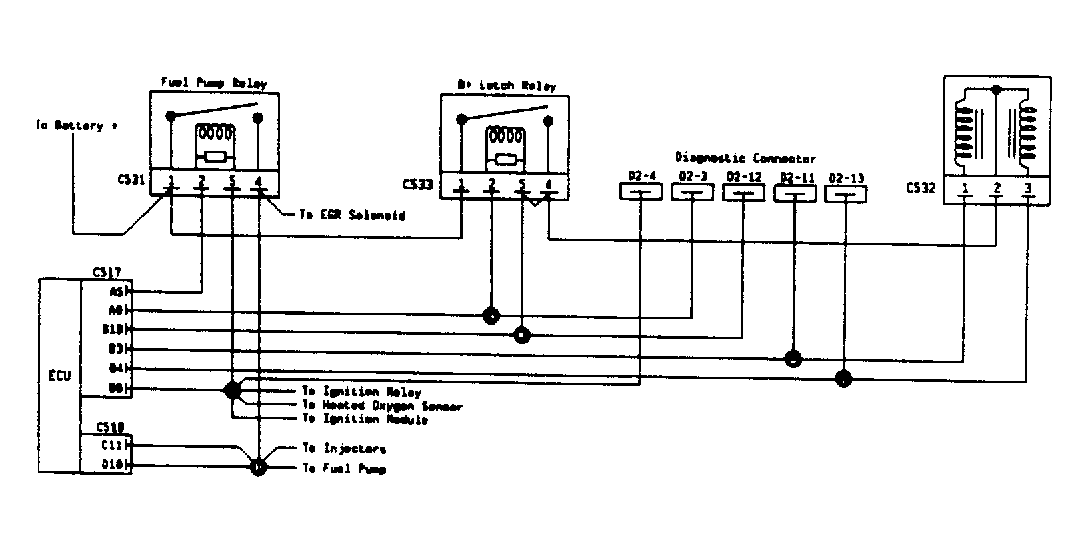

Fig 1: Fault 1068 - Latch Relay Line High Schematic

Courtesy of CHRYSLER MOTORS

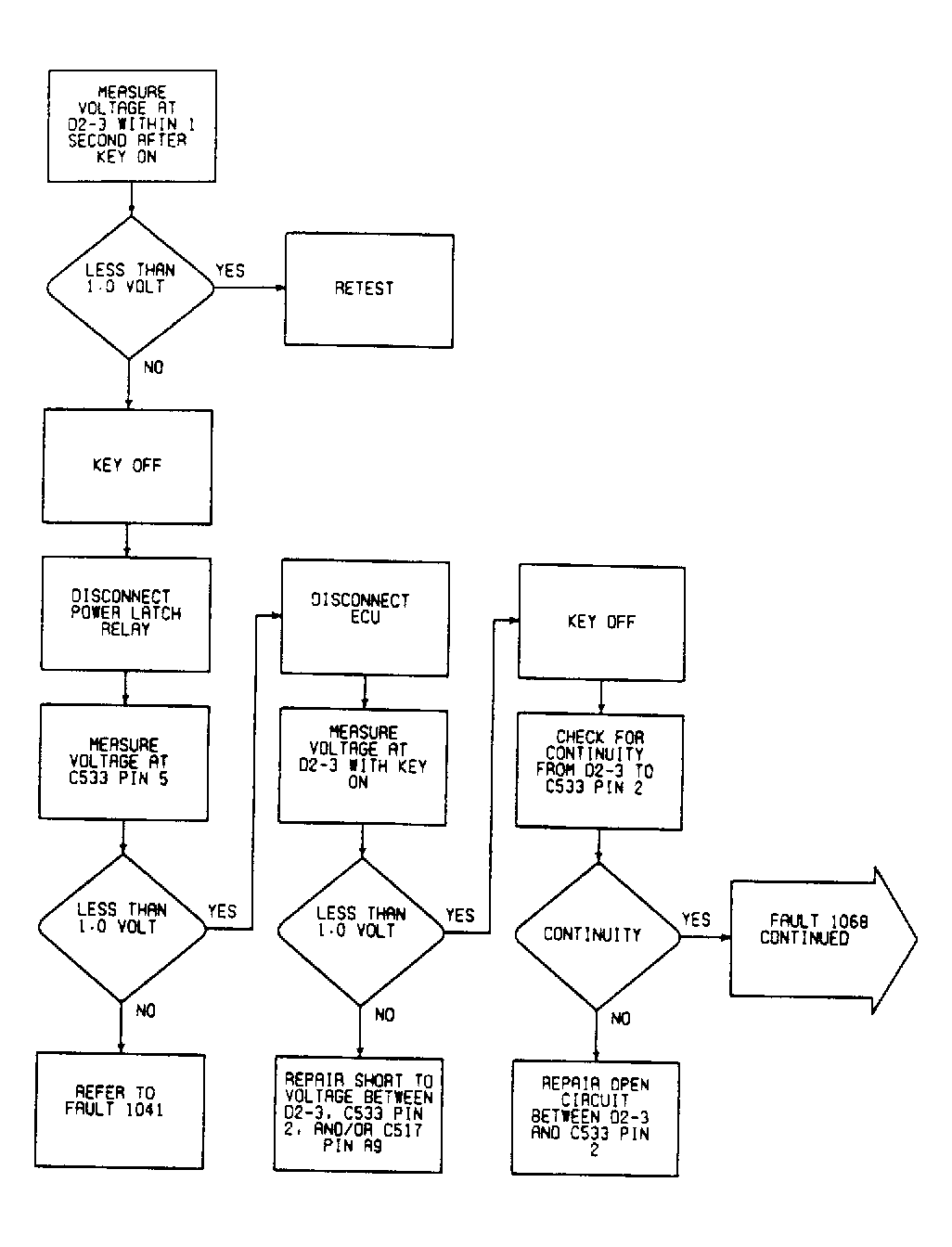

Fig 2: Fault 1068 (1 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS

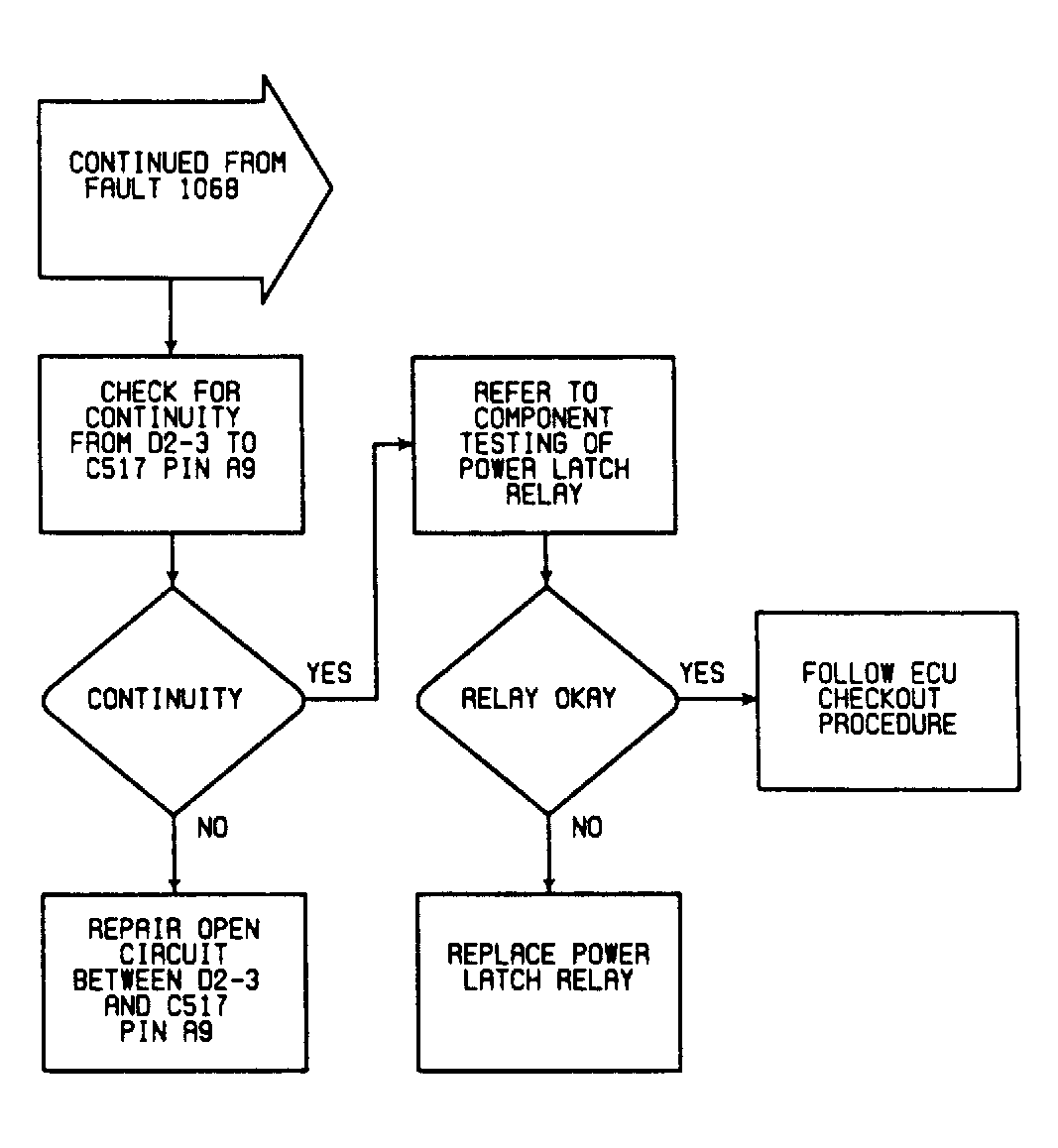

Fig 3: Fault 1068 (2 of 2) - Flow Chart

Courtesy of CHRYSLER MOTORS
